Chez Acier Lachine Inc., nous pouvons fournir des tubes carrés, rectangulaires ou ronds ainsi que des tuyaux noirs ou galvanisés pour tous vos besoins de construction, fabrication, projets spéciaux. Nous offrons une variété de tailles.
Cliquez sur une des rubriques ci-dessous pour consulter les tableaux des tailles disponibles. Si vous ne trouvez pas ce que vous cherchez, appeler un de nos représentants des ventes, nous le trouverons pour vous.
Explorez notre diversité des TUBES ET TUYAUX EN ACIER
TUBES CARRÉS
LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
TUBES RECTANGULAIRES
LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
TUBES RONDS
LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
TUYAUX NOIRS ET GALVANISÉS
CÉDULE 40
SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
TUYAUX NOIRS ET GALVANISÉS
CÉDULE 80
SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
TUYAUX NOIRS ET GALVANISÉS
CÉDULE XXS (DOUBLE EXTRA FORT)
SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
TUBES RONDS MÉCANIQUES
DOM, CDS, HFS
Normes (ASTM): A513 type 5, A519, A519/A106
TUBES RONDS HYDRAULIQUES
SEAMLESS (SMLS), WELDED (ERW),
Normes (ASTM): A179, J524B, SAE J525B
Découvrez les Spécifications Techniques et Grandeurs Disponibles
TUBES CARRÉS – LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
Grandeurs disponibles: 20′, 24′ & 48′ ou couper sur mesure
Le Tube Carré en Acier, est un tube d’acier de construction soudé avec un cordon de soudure interne. Disponible en A513 ou A500 Grade A ET B en fonction de l’épaisseur de sa taille et du mur.
UTILISATION:
Le tube en acier carré est largement utilisé dans la maintenance industrielle, pour les outils agricoles, le matériel de transport, d’ornement, etc. Les tubes (HSS) doivent remplir une fonction structurale dans le cadre d’un concept d’ingénierie, les propriétés physiques et la qualité commerciale de ces derniers sont garanties.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
|---|---|---|---|
| 1 | 3/4″ x 3/4″ | 19mm x 19mm | |
| 2 | 3/4″ x 3/4″ x 0.083″ | 19mm x 19mm x 2.11mm | 0.750 lbs. |
| 3 | 1″ x 1″ | 25.4mm x 25.4mm | |
| 4 | 1″ x 1″ x 0.083″ | 25.4mm x 25.4mm x 2.11mm | 1.040 lbs. |
| 5 | 1″ x 1″ x 0.100″ | 25.4mm x 25.4mm x 2.54mm | 1.140 lbs. |
| 6 | 1″ x 1″ x 0.110″ | 25.4mm x 25.4mm x 2.79mm | 1.230 lbs. |
| 7 | 1″ x 1″ x 0.125″ | 25.4mm x 25.4mm x 3.18mm | 1.350 lbs. |
| 8 | 1″ x 1″ x 0.150″ | 25.4mm x 25.4mm x 3.81mm | 1.540 lbs. |
| 9 | 1 1/4″ x 1 1/4″ | 31.8mm x 31.8mm | |
| 10 | 1 1/4″ x 1 1/4″ x 0.083″ | 31.8mm x 31.8mm x 2.11mm | 1.230 lbs. |
| 11 | 1 1/4″ x 1 1/4″ x 0.100″ | 31.8mm x 31.8mm x 2.54mm | 1.480 lbs. |
| 12 | 1 1/4″ x 1 1/4″ x 0.110″ | 31.8mm x 31.8mm x 2.79mm | 1.570 lbs. |
| 13 | 1 1/4″ x 1 1/4″ x 0.125″ | 31.8mm x 31.8mm x 3.18mm | 1.780 lbs. |
| 14 | 1 1/4″ x 1 1/4″ x 0.150″ | 31.8mm x 31.8mm x 3.81mm | 2.050 lbs. |
| 15 | 1 1/2″ x 1 1/2″ | 38.1mm x 38.1mm | |
| 16 | 1 1/2″ x 1 1/2″ x 0.083″ | 38.1mm x 38.1mm x 2.11mm | 1.510 lbs. |
| 17 | 1 1/2″ x 1 1/2″ x 0.100″ | 38.1mm x 38.1mm x 2.54mm | 1.820 lbs. |
| 18 | 1 1/2″ x 1 1/2″ x 0.110″ | 38.1mm x 38.1mm x 2.79mm | 1.970 lbs. |
| 19 | 1 1/2″ x 1 1/2″ x 0.125″ | 38.1mm x 38.1mm x 3.18mm | 2.210 lbs. |
| 20 | 1 1/2″ x 1 1/2″ x 0.134″ | 38.1mm x 38.1mm x 3.40mm | 2.330 lbs. |
| 21 | 1 1/2″ x 1 1/2″ x 0.150″ | 38.1mm x 38.1mm x 3.81mm | 2.560 lbs. |
| 22 | 1 1/2″ x 1 1/2″ x 0.188″ | 38.1mm x 38.1mm x 4.78mm | 3.350 lbs. |
| 23 | 1 3/4″ x 1 3/4″ | 44.5mm x 44.5mm | |
| 24 | 1 3/4″ x 1 3/4″ x 0.100″ | 44.5mm x 44.5mm x 2.54mm | 2.240 lbs. |
| 25 | 1 3/4″ x 1 3/4″ x 0.110″ | 44.5mm x 44.5mm x 2.79mm | 2.450 lbs. |
| 26 | 1 3/4″ x 1 3/4″ x 0.125″ | 44.5mm x 44.5mm x 3.18mm | 2.760 lbs. |
| 27 | 2″ x 2″ | 50.8mm x 50.8mm | |
| 28 | 2″ x 2″ x 0.100″ | 50.8mm x 50.8mm x 2.54mm | 2.580 lbs. |
| 29 | 2″ x 2″ x 0.110″ | 50.8mm x 50.8mm x 2.79mm | 2.830 lbs. |
| 30 | 2″ x 2″ x 0.125″ | 50.8mm x 50.8mm x 3.18mm | 3.060 lbs. |
| 31 | 2″ x 2″ x 0.134″ | 50.8mm x 50.8mm x 3.40mm | 3.240 lbs. |
| 32 | 2″ x 2″ x 0.150″ | 50.8mm x 50.8mm x 3.81mm | 3.580 lbs. |
| 33 | 2″ x 2″ x 0.188″ | 50.8mm x 50.8mm x 4.78mm | 4.330 lbs. |
| 34 | 2″ x 2″ x 0.250″ | 50.8mm x 50.8mm x 6.35mm | 5.410 lbs. |
| 35 | 2 1/4″ x 2 1/4″ | 57.2mm x 57.2mm | |
| 36 | 2 1/4″ x 2 1/4″ x 0.100″ | 57.2mm x 57.2mm x 2.54mm | 2.840 lbs. |
| 37 | 2 1/4″ x 2 1/4″ x 0.125″ | 57.2mm x 57.2mm x 3.18mm | 3.480 lbs. |
| 38 | 2 1/4″ x 2 1/4″ x 0.150″ | 57.2mm x 57.2mm x 3.81mm | 4.090 lbs. |
| 39 | 2 1/4″ x 2 1/4″ x 0.188″ | 57.2mm x 57.2mm x 4.78mm | 4.960 lbs. |
| 40 | 2 1/4″ x 2 1/4″ x 0.250″ | 57.2mm x 57.2mm x 6.35mm | 6.260 lbs. |
| 41 | 2 1/2″ x 2 1/2″ | 63.5mm x 63.5mm | |
| 42 | 2 1/2″ x 2 1/2″ x 0.100″ | 63.5mm x 63.5mm x 2.54mm | 3.260 lbs. |
| 43 | 2 1/2″ x 2 1/2″ x 0.110″ | 63.5mm x 63.5mm x 2.79mm | 3.580 lbs. |
| 44 | 2 1/2″ x 2 1/2″ x 0.125″ | 63.5mm x 63.5mm x 3.18mm | 3.910 lbs. |
| 45 | 2 1/2″ x 2 1/2″ x 0.134″ | 63.5mm x 63.5mm x 3.40mm | 4.160 lbs. |
| 46 | 2 1/2″ x 2 1/2″ x 0.150″ | 63.5mm x 63.5mm x 3.81mm | 4.600 lbs. |
| 47 | 2 1/2″ x 2 1/2″ x 0.188″ | 63.5mm x 63.5mm x 4.78mm | 5.610 lbs. |
| 48 | 2 1/2″ x 2 1/2″ x 0.210″ | 63.5mm x 63.5mm x 5.33mm | 6.160 lbs. |
| 49 | 2 1/2″ x 2 1/2″ x 0.230″ | 63.5mm x 63.5mm x 5.84mm | 6.420 lbs. |
| 50 | 2 1/2″ x 2 1/2″ x 0.250″ | 63.5mm x 63.5mm x 6.35mm | 7.110 lbs. |
| 51 | 2 3/4″ x 2 3/4″ | 69.9mm x 69.9mm | |
| 52 | 2 3/4″ x 2 3/4″ x 0.110″ | 69.9mm x 69.9mm x 2.79mm | 3.960 lbs. |
| 53 | 2 3/4″ x 2 3/4″ x 0.125″ | 69.9mm x 69.9mm x 3.18mm | 4.340 lbs. |
| 54 | 2 3/4″ x 2 3/4″ x 0.150″ | 69.9mm x 69.9mm x 3.81mm | 5.110 lbs. |
| 55 | 3″ x 3″ | 76.2mm x 76.2mm | |
| 56 | 3″ x 3″ x 0.095″ | 76.2mm x 76.2mm x 2.41mm | 3.750 lbs. |
| 57 | 3″ x 3″ x 0.100″ | 76.2mm x 76.2mm x 2.54mm | 3.950 lbs. |
| 58 | 3″ x 3″ x 0.110″ | 76.2mm x 76.2mm x 2.79mm | 4.320 lbs. |
| 59 | 3″ x 3″ x 0.125″ | 76.2mm x 76.2mm x 3.18mm | 4.760 lbs. |
| 60 | 3″ x 3″ x 0.134″ | 76.2mm x 76.2mm x 3.40mm | 5.070 lbs. |
| 61 | 3″ x 3″ x 0.150″ | 76.2mm x 76.2mm x 3.81mm | 5.620 lbs. |
| 62 | 3″ x 3″ x 0.188″ | 76.2mm x 76.2mm x 4.78mm | 6.890 lbs. |
| 63 | 3″ x 3″ x 0.210″ | 76.2mm x 76.2mm x 5.33mm | 7.590 lbs. |
| 64 | 3″ x 3″ x 0.250″ | 76.2mm x 76.2mm x 6.35mm | 8.810 lbs. |
| 65 | 3″ x 3″ x 0.313″ | 76.2mm x 76.2mm x 7.95mm | 10.590 lbs. |
| 66 | 3″ x 3″ x 0.375″ | 76.2mm x 76.2mm x 9.53mm | 12.170 lbs. |
| 67 | 3 1/2″ x 3 1/2″ | 88.9mm x 88.9mm | |
| 68 | 3 1/2″ x 3 1/2″ x 0.109″ | 88.9mm x 88.9mm x 2.77mm | 4.950 lbs. |
| 69 | 3 1/2″ x 3 1/2″ x 0.120″ | 88.9mm x 88.9mm x 3.05mm | 5.540 lbs. |
| 70 | 3 1/2″ x 3 1/2″ x 0.125″ | 88.9mm x 88.9mm x 3.18mm | 5.610 lbs. |
| 71 | 3 1/2″ x 3 1/2″ x 0.134″ | 88.9mm x 88.9mm x 3.40mm | 5.980 lbs. |
| 72 | 3 1/2″ x 3 1/2″ x 0.150″ | 88.9mm x 88.9mm x 3.81mm | 6.640 lbs. |
| 73 | 3 1/2″ x 3 1/2″ x 0.188″ | 88.9mm x 88.9mm x 4.78mm | 8.170 lbs. |
| 74 | 3 1/2″ x 3 1/2″ x 0.210″ | 88.9mm x 88.9mm x 5.33mm | 9.010 lbs. |
| 75 | 3 1/2″ x 3 1/2″ x 0.250″ | 88.9mm x 88.9mm x 6.35mm | 10.510 lbs. |
| 76 | 3 1/2″ x 3 1/2″ x 0.313 1/2″ | 88.9mm x 88.9mm x 7.95mm | 12.700 lbs. |
| 77 | 3 1/2″ x 3 1/2″ x 0.375″ | 88.9mm x 88.9mm x 9.53mm | 14.710 lbs. |
| 78 | 3 3/4″ x 3 3/4″ | 95.3mm x 95.3mm | |
| 79 | 3 3/4″ x 3 3/4″ x 0.150″ | 95.3mm x 95.3mm x 3.81mm | 7.150 lbs. |
| 80 | 3 3/4″ x 3 3/4″ x 0.188″ | 95.3mm x 95.3mm x 4.78mm | 8.810 lbs. |
| 81 | 3 3/4″ x 3 3/4″ x 0.250″ | 95.3mm x 95.3mm x 6.35mm | 11.360 lbs. |
| 82 | 3 3/4″ x 3 3/4″ x 0.313 3/4″ | 95.3mm x 95.3mm x 7.95mm | 13.770 lbs. |
| 83 | 4″ x 4″ | 101.6mm x 101.6mm | |
| 84 | 4″ x 4″ x 0.109″ | 101.6mm x 101.6mm x 2.77mm | 5.690 lbs. |
| 85 | 4″ x 4″ x 0.125″ | 101.6mm x 101.6mm x 3.18mm | 6.460 lbs. |
| 86 | 4″ x 4″ x 0.134″ | 101.6mm x 101.6mm x 3.40mm | 6.890 lbs. |
| 87 | 4″ x 4″ x 0.150″ | 101.6mm x 101.6mm x 3.81mm | 7.660 lbs. |
| 88 | 4″ x 4″ x 0.188″ | 101.6mm x 101.6mm x 4.78mm | 9.450 lbs. |
| 89 | 4″ x 4″ x 0.210″ | 101.6mm x 101.6mm x 5.33mm | 10.510 lbs. |
| 90 | 4″ x 4″ x 0.250″ | 101.6mm x 101.6mm x 6.35mm | 12.210 lbs. |
| 91 | 4″ x 4″ x 0.313″ | 101.6mm x 101.6mm x 7.95mm | 14.830 lbs. |
| 92 | 4″ x 4″ x 0.375″ | 101.6mm x 101.6mm x 9.53mm | 17.270 lbs. |
| 93 | 4″ x 4″ x 0.500″ | 101.6mm x 101.6mm x 12.70mm | 21.630 lbs. |
| 94 | 4 1/2″ x 4 1/2″ | 114.3mm x 114.3mm | |
| 95 | 4 1/2″ x 4 1/2″ x 0.125″ | 114.3mm x 114.3mm x 3.18mm | 7.310 lbs. |
| 96 | 4 1/2″ x 4 1/2″ x 0.134 1/2″ | 114.3mm x 114.3mm x 3.40mm | 7.810 lbs. |
| 97 | 4 1/2″ x 4 1/2″ x 0.150″ | 114.3mm x 114.3mm x 3.81mm | 8.690 lbs. |
| 98 | 4 1/2″ x 4 1/2″ x 0.188″ | 114.3mm x 114.3mm x 4.78mm | 10.700 lbs. |
| 99 | 4 1/2″ x 4 1/2″ x 0.250″ | 114.3mm x 114.3mm x 6.35mm | 13.910 lbs. |
| 100 | 4 1/2″ x 4 1/2″ x 0.313″ | 114.3mm x 114.3mm x 7.95mm | 16.960 lbs. |
| 101 | 4 1/2″ x 4 1/2″ x 0.375″ | 114.3mm x 114.3mm x 9.53mm | 19.820 lbs. |
| 102 | 5″ x 5″ | 127.0mm x 127.0mm | |
| 103 | 5″ x 5″ x 0.150″ | 127.0mm x 127.0mm x 3.81mm | 9.710 lbs. |
| 104 | 5″ x 5″ x 0.188″ | 127.0mm x 127.0mm x 4.78mm | 12.000 lbs. |
| 105 | 5″ x 5″ x 0.250″ | 127.0mm x 127.0mm x 6.35mm | 15.620 lbs. |
| 106 | 5″ x 5″ x 0.313″ | 127.0mm x 127.0mm x 7.95mm | 19.080 lbs. |
| 107 | 5″ x 5″ x 0.375″ | 127.0mm x 127.0mm x 9.53mm | 22.370 lbs. |
| 108 | 5″ x 5″ x 0.438″ | 127.0mm x 127.0mm x 11.13mm | 25.500 lbs. |
| 109 | 5″ x 5″ x 0.500″ | 127.0mm x 127.0mm x 12.70mm | 28.430 lbs. |
| 110 | 5 1/2″ x 5 1/2″ | 139.7mm x 139.7mm | |
| 111 | 5 1/2″ x 5 1/2″ x 0.188″ | 139.7mm x 139.7mm x 4.78mm | 13.280 lbs. |
| 112 | 5 1/2″ x 5 1/2″ x 0.250″ | 139.7mm x 139.7mm x 6.35mm | 17.320 lbs. |
| 113 | 5 1/2″ x 5 1/2″ x 0.313″ | 139.7mm x 139.7mm x 7.95mm | 21.180 lbs. |
| 114 | 5 1/2″ x 5 1/2″ x 0.375 1/2″ | 139.7mm x 139.7mm x 9.53mm | 24.920 lbs. |
| 115 | 6″ x 6″ | 152.4mm x 152.4mm | |
| 116 | 6″ x 6″ x 0.188″ | 152.4mm x 152.4mm x 4.78mm | 14.560 lbs. |
| 117 | 6″ x 6″ x 0.250″ | 152.4mm x 152.4mm x 6.35mm | 19.020 lbs. |
| 118 | 6″ x 6″ x 0.313″ | 152.4mm x 152.4mm x 7.95mm | 23.330 lbs. |
| 119 | 6″ x 6″ x 0.375 | 152.4mm x 152.4mm x 9.53mm | 27.480 lbs. |
| 120 | 6″ x 6″ x 0.438″ | 152.4mm x 152.4mm x 11.13mm | 31.500 lbs. |
| 121 | 6″ x 6″ x 0.500″ | 152.4mm x 152.4mm x 12.70mm | 35.240 lbs. |
| 122 | 6″ x 6″ x 0.625″ | 152.4mm x 152.4mm x 15.88mm | 42.260 lbs. |
| 123 | 7″ x 7″ | 177.8mm x 177.8mm | |
| 124 | 7″ x 7″ x 0.188″ | 177.8mm x 177.8mm x 4.78mm | 17.130 lbs. |
| 125 | 7″ x 7″ x 0.250″ | 177.8mm x 177.8mm x 6.35mm | 22.420 lbs. |
| 126 | 7″ x 7″ x 0.313″ | 177.8mm x 177.8mm x 7.95mm | 27.630 lbs. |
| 127 | 7″ x 7″ x 0.375 | 177.8mm x 177.8mm x 9.53mm | 32.580 lbs. |
| 128 | 7″ x 7″ x 0.438″ | 177.8mm x 177.8mm x 11.13mm | 37.500 lbs. |
| 129 | 7″ x 7″ x 0.500″ | 177.8mm x 177.8mm x 12.70mm | 42.050 lbs. |
| 130 | 7″ x 7″ x 0.625″ | 177.8mm x 177.8mm x 15.88mm | 50.760 lbs. |
| 131 | 8″ x 8″ | 203.2mm x 203.2mm | |
| 132 | 8″ x 8″ x 0.188″ | 203.2mm x 203.2mm x 4.78mm | 19.630 lbs. |
| 133 | 8″ x 8″ x 0.250″ | 203.2mm x 203.2mm x 6.35mm | 25.820 lbs. |
| 134 | 8″ x 8″ x 0.313″ | 203.2mm x 203.2mm x 7.95mm | 31.840 lbs. |
| 135 | 8″ x 8″ x 0.375 | 203.2mm x 203.2mm x 9.53mm | 37.690 lbs. |
| 136 | 8″ x 8″ x 0.438″ | 203.2mm x 203.2mm x 11.13mm | 43.400 lbs. |
| 137 | 8″ x 8″ x 0.500″ | 203.2mm x 203.2mm x 12.70mm | 48.850 lbs. |
| 138 | 8″ x 8″ x 0.625″ | 203.2mm x 203.2mm x 15.88mm | 59.320 lbs. |
| 139 | 9″ x 9″ | 228.6mm x 228.6mm | |
| 140 | 9″ x 9″ x 0.188″ | 228.6mm x 228.6mm x 4.78mm | 22.180 lbs. |
| 141 | 9″ x 9″ x 0.250″ | 228.6mm x 228.6mm x 6.35mm | 29.230 lbs. |
| 142 | 9″ x 9″ x 0.313″ | 228.6mm x 228.6mm x 7.95mm | 36.100 lbs. |
| 143 | 9″ x 9″ x 0.375 | 228.6mm x 228.6mm x 9.53mm | 42.790 lbs. |
| 144 | 9″ x 9″ x 0.500″ | 228.6mm x 228.6mm x 12.70mm | 55.660 lbs. |
| 145 | 10″ x 10″ | 254.0mm x 254.0mm | |
| 146 | 10″ x 10″ x 0.250″ | 254.0mm x 254.0mm x 6.35mm | 32.630 lbs. |
| 147 | 10″ x 10″ x 0.313″ | 254.0mm x 254.0mm x 7.95mm | 40.350 lbs. |
| 148 | 10″ x 10″ x 0.375 | 254.0mm x 254.0mm x 9.53mm | 47.900 lbs. |
| 149 | 10″ x 10″ x 0.438″ | 254.0mm x 254.0mm x 11.13mm | 55.400 lbs. |
| 150 | 10″ x 10″ x 0.500″ | 254.0mm x 254.0mm x 12.70mm | 62.460 lbs. |
| 151 | 10″ x 10″ x 0.625″ | 254.0mm x 254.0mm x 15.88mm | 76.330 lbs. |
| 152 | 12″ x 12″ | 304.8mm x 304.8mm | |
| 153 | 12″ x 12″ x 0.250″ | 304.8mm x 304.8mm x 6.35mm | 39.430 lbs. |
| 154 | 12″ x 12″ x 0.313″ | 304.8mm x 304.8mm x 7.95mm | 48.860 lbs. |
| 155 | 12″ x 12″ x 0.375 | 304.8mm x 304.8mm x 9.53mm | 58.100 lbs. |
| 156 | 12″ x 12″ x 0.438″ | 304.8mm x 304.8mm x 11.13mm | 67.500 lbs. |
| 157 | 12″ x 12″ x 0.500″ | 304.8mm x 304.8mm x 12.70mm | 76.070 lbs. |
| 158 | 14″ x 14″ | 355.6mm x 355.6mm | |
| 159 | 14″ x 14″ x 0.313″ | 355.6mm x 355.6mm x 7.95mm | 57.360 lbs. |
| 160 | 14″ x 14″ x 0.375 | 355.6mm x 355.6mm x 9.53mm | 68.310 lbs. |
| 161 | 14″ x 14″ x 0.500″ | 355.6mm x 355.6mm x 12.70mm | 89.680 lbs. |
| 162 | 16″ x 16″ | 406.4mm x 406.4mm | |
| 163 | 16″ x 16″ x 0.313″ | 406.4mm x 406.4mm x 7.95mm | 62.870 lbs. |
| 164 | 16″ x 16″ x 0.375 | 406.4mm x 406.4mm x 9.53mm | 78.520 lbs. |
| 165 | 16″ x 16″ x 0.500″ | 406.4mm x 406.4mm x 12.70mm | 103.300 lbs. |
| Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUBES RECTANGULAIRES – LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
Grandeurs disponibles: 20′, 24′ & 48′ ou couper sur mesure
Le Tube Rectangulaire en Acier est un tube d’acier de construction soudé avec un cordon de soudure interne. Disponible en A513 ou A500 Grade A ET B en fonction de l’épaisseur de sa taille et du mur.
UTILISATION:
Le tube en acier rectangulaire est largement utilisé dans la maintenance industrielle, pour les outils agricoles, le matériel de transport, d’ornement, etc. Les tubes (HSS) doivent remplir une fonction structurale dans le cadre d’un concept d’ingénierie, les propriétés physiques et la qualité commerciale de ces derniers sont garanties.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
|---|---|---|---|
| 1 | 1 1/2″ x 1″ | 38.1mm x 25.4mm | |
| 2 | 1 1/2″ x 1″ x 0.100″ | 38.1mm x 25.4mm x 2.54mm | 1.560 lbs. |
| 3 | 1 1/2″ x 1″ x 0.110″ | 38.1mm x 25.4mm x 2.79mm | 1.710 lbs. |
| 4 | 1 1/2″ x 1″ x 0.125″ | 38.1mm x 25.4mm x 3.18mm | 1.910 lbs. |
| 5 | 1 1/2″ x 1″ x 0.150″ | 38.1mm x 25.4mm x 3.81mm | 2.180 lbs. |
| 6 | 2″ x 1″ | 50.8mm x 25.4mm | |
| 7 | 2″ x 1″ x 0.083″ | 50.8mm x 25.4mm x 2.11mm | 1.610 lbs. |
| 8 | 2″ x 1″ x 0.100″ | 50.8mm x 25.4mm x 2.54mm | 1.820 lbs. |
| 9 | 2″ x 1″ x 0.110″ | 50.8mm x 25.4mm x 2.79mm | 1.940 lbs. |
| 10 | 2″ x 1″ x 0.125″ | 50.8mm x 25.4mm x 3.18mm | 2.210 lbs. |
| 11 | 2″ x 1″ x 0.134″ | 50.8mm x 25.4mm x 3.40mm | 2.490 lbs. |
| 12 | 2″ x 1″ x 0.150″ | 50.8mm x 25.4mm x 3.81mm | 2.750 lbs. |
| 13 | 2″ x 1″ x 0.188″ | 50.8mm x 25.4mm x 4.78mm | 3.350 lbs. |
| 14 | 2″ x 1 1/2″ | 50.8mm x 38.1mm | |
| 15 | 2″ x 1 1/2″ x 0.100″ | 50.8mm x 38.1mm x 2.54mm | 2.580 lbs. |
| 16 | 2″ x 1 1/2″ x 0.125″ | 50.8mm x 38.1mm x 3.18mm | 2.660 lbs. |
| 17 | 2 1/2″ x 1 1/2″ | 63.5mm x 38.1mm | |
| 18 | 2 1/2″ x 1 1/2″ x 0.100″ | 63.5mm x 38.1mm x 2.54mm | 2.580 lbs. |
| 19 | 2 1/2″ x 1 1/2″ x 0.110″ | 63.5mm x 38.1mm x 2.79mm | 2.830 lbs. |
| 20 | 2 1/2″ x 1 1/2″ x 0.125″ | 63.5mm x 38.1mm x 3.18mm | 3.060 lbs. |
| 21 | 2 1/2″ x 1 1/2″ x 0.150″ | 63.5mm x 38.1mm x 3.81mm | 3.580 lbs. |
| 22 | 2 1/2″ x 1 1/2″ x 0.188″ | 63.5mm x 38.1mm x 4.78mm | 4.330 lbs. |
| 23 | 2 1/2″ x 1 1/2″ x 0.250″ | 63.5mm x 38.1mm x 6.35mm | 5.410 lbs. |
| 24 | 3″ x 1″ | 76.2mm x 25.4mm | |
| 25 | 3″ x 1″ x 0.100″ | 76.2mm x 25.4mm x 2.54mm | 2.580 lbs. |
| 26 | 3″ x 1″ x 0.110″ | 76.2mm x 25.4mm x 2.79mm | 2.830 lbs. |
| 27 | 3″ x 1″ x 0.125″ | 76.2mm x 25.4mm x 3.18mm | 3.060 lbs. |
| 28 | 3″ x 1″ x 0.150″ | 76.2mm x 25.4mm x 3.81mm | 3.580 lbs. |
| 29 | 3″ x 1″ x 0.188″ | 76.2mm x 25.4mm x 4.78mm | 4.330 lbs. |
| 30 | 3″ x 1″ x 0.250″ | 76.2mm x 25.4mm x 6.35mm | 5.410 lbs. |
| 31 | 3″ x 1 1/2″ | 76.2mm x 38.1mm | |
| 32 | 3″ x 1 1/2″ x 0.100″ | 76.2mm x 38.1mm x 2.54mm | 2.920 lbs. |
| 33 | 3″ x 1 1/2″ x 0.125″ | 76.2mm x 38.1mm x 3.18mm | 3.480 lbs. |
| 34 | 3″ x 1 1/2″ x 0.150″ | 76.2mm x 38.1mm x 3.81mm | 4.090 lbs. |
| 35 | 3″ x 1 1/2″ x 0.188″ | 76.2mm x 38.1mm x 4.78mm | 4.960 lbs. |
| 36 | 3″ x 2″ | 76.2mm x 50.8mm | |
| 37 | 3″ x 2″ x 0.100″ | 76.2mm x 50.8mm x 2.54mm | 3.260 lbs. |
| 38 | 3″ x 2″ x 0.110″ | 76.2mm x 50.8mm x 2.79mm | 3.580 lbs. |
| 39 | 3″ x 2″ x 0.125″ | 76.2mm x 50.8mm x 3.18mm | 3.910 lbs. |
| 40 | 3″ x 2″ x 0.134″ | 76.2mm x 50.8mm x 3.40mm | 4.160 lbs. |
| 41 | 3″ x 2″ x 0.150″ | 76.2mm x 50.8mm x 3.81mm | 4.600 lbs. |
| 42 | 3″ x 2″ x 0.188″ | 76.2mm x 50.8mm x 4.78mm | 5.610 lbs. |
| 43 | 3″ x 2″ x 0.210″ | 76.2mm x 50.8mm x 5.33mm | 6.160 lbs. |
| 44 | 3″ x 2″ x 0.250″ | 76.2mm x 50.8mm x 6.35mm | 7.110 lbs. |
| 45 | 3″ x 2″ x 0.313″ | 76.2mm x 50.8mm x 7.95mm | 8.430 lbs. |
| 46 | 3″ x 2 1/2″ | 76.2mm x 63.5mm | |
| 47 | 3″ x 2 1/2″ x 0.090″ | 76.2mm x 63.5mm x 2.79mm | 3.190 lbs. |
| 48 | 3″ x 2 1/2″ x 0.109″ | 76.2mm x 63.5mm x 2.77mm | 3.810 lbs. |
| 49 | 3″ x 2 1/2″ x 0.125″ | 76.2mm x 63.5mm x 3.18mm | 4.310 lbs. |
| 50 | 3″ x 2 1/2″ x 0.160″ | 76.2mm x 63.5mm x 4.06mm | 5.430 lbs. |
| 51 | 3″ x 2 1/2″ x 0.188″ | 76.2mm x 63.5mm x 4.78mm | 6.250 lbs. |
| 52 | 3 1/2″ x 2″ | 88.9mm x 50.8mm | |
| 53 | 3 1/2″ x 2″ x 0.090″ | 88.9mm x 50.8mm x 2.79mm | 3.190 lbs. |
| 54 | 3 1/2″ x 2″ x 0.109″ | 88.9mm x 50.8mm x 2.77mm | 3.810 lbs. |
| 55 | 3 1/2″ x 2″ x 0.125″ | 88.9mm x 50.8mm x 3.18mm | 4.310 lbs. |
| 56 | 3 1/2″ x 2″ x 0.160″ | 88.9mm x 50.8mm x 4.06mm | 5.430 lbs. |
| 57 | 3 1/2″ x 2″ x 0.188″ | 88.9mm x 50.8mm x 4.78mm | 6.250 lbs. |
| 58 | 3 1/2″ x 2 1/2″ | 88.9mm x 63.5mm | |
| 59 | 3 1/2″ x 2 1/2″ x 0.095″ | 88.9mm x 63.5mm x 2.41mm | 3.660 lbs. |
| 60 | 3 1/2″ x 2 1/2″ x 0.125″ | 88.9mm x 63.5mm x 3.18mm | 4.760 lbs. |
| 61 | 3 1/2″ x 2 1/2″ x 0.134″ | 88.9mm x 63.5mm x 3.40mm | 5.070 lbs. |
| 62 | 3 1/2″ x 2 1/2″ x 0.150″ | 88.9mm x 63.5mm x 3.81mm | 5.620 lbs. |
| 63 | 3 1/2″ x 2 1/2″ x 0.188″ | 88.9mm x 63.5mm x 4.78mm | 6.890 lbs. |
| 64 | 3 1/2″ x 2 1/2″ x 0.210″ | 88.9mm x 63.5mm x 5.33mm | 7.590 lbs. |
| 65 | 3 1/2″ x 2 1/2″ x 0.250″ | 88.9mm x 63.5mm x 6.35mm | 8.810 lbs. |
| 66 | 3 1/2″ x 2 1/2″ x 0.313″ | 88.9mm x 63.5mm x 7.95mm | 10.590 lbs. |
| 67 | 4″ x 2″ | 101.6mm x 50.8mm | |
| 68 | 4″ x 2″ x 0.095″ | 101.6mm x 50.8mm x 2.41mm | 3.660 lbs. |
| 69 | 4″ x 2″ x 0.125″ | 101.6mm x 50.8mm x 3.18mm | 4.760 lbs. |
| 70 | 4″ x 2″ x 0.134″ | 101.6mm x 50.8mm x 3.40mm | 5.070 lbs. |
| 71 | 4″ x 2″ x 0.150″ | 101.6mm x 50.8mm x 3.81mm | 5.620 lbs. |
| 72 | 4″ x 2″ x 0.188″ | 101.6mm x 50.8mm x 4.78mm | 6.890 lbs. |
| 73 | 4″ x 2″ x 0.210″ | 101.6mm x 50.8mm x 5.33mm | 7.590 lbs. |
| 74 | 4″ x 2″ x 0.250″ | 101.6mm x 50.8mm x 6.35mm | 8.810 lbs. |
| 75 | 4″ x 2″ x 0.313″ | 101.6mm x 50.8mm x 7.95mm | 10.590 lbs. |
| 76 | 4″ x 3″ | 101.6mm x 76.2mm | |
| 77 | 4″ x 3″ x 0.109″ | 101.6mm x 76.2mm x 2.77mm | 4.920 lbs. |
| 78 | 4″ x 3″ x 0.120″ | 101.6mm x 76.2mm x 3.05mm | 5.390 lbs. |
| 79 | 4″ x 3″ x 0.125″ | 101.6mm x 76.2mm x 3.18mm | 5.610 lbs. |
| 80 | 4″ x 3″ x 0.134″ | 101.6mm x 76.2mm x 3.40mm | 5.980 lbs. |
| 81 | 4″ x 3″ x 0.150″ | 101.6mm x 76.2mm x 3.81mm | 6.640 lbs. |
| 82 | 4″ x 3″ x 0.188″ | 101.6mm x 76.2mm x 4.78mm | 8.170 lbs. |
| 83 | 4″ x 3″ x 0.210″ | 101.6mm x 76.2mm x 5.33mm | 9.010 lbs. |
| 84 | 4″ x 3″ x 0.250″ | 101.6mm x 76.2mm x 6.35mm | 10.510 lbs. |
| 85 | 4″ x 3″ x 0.313″ | 101.6mm x 76.2mm x 7.95mm | 12.700 lbs. |
| 86 | 4″ x 3″ x 0.375 | 101.6mm x 76.2mm x 9.53mm | 14.710 lbs. |
| 87 | 5″ x 2″ | 127mm x 50.8mm | |
| 88 | 5″ x 2″ x 0.109″ | 127mm x 50.8mm x 2.77mm | 4.920 lbs. |
| 89 | 5″ x 2″ x 0.120″ | 127mm x 50.8mm x 3.05mm | 5.390 lbs. |
| 90 | 5″ x 2″ x 0.125″ | 127mm x 50.8mm x 3.18mm | 5.610 lbs. |
| 91 | 5″ x 2″ x 0.134″ | 127mm x 50.8mm x 3.40mm | 5.980 lbs. |
| 92 | 5″ x 2″ x 0.150″ | 127mm x 50.8mm x 3.81mm | 6.640 lbs. |
| 93 | 5″ x 2″ x 0.188″ | 127mm x 50.8mm x 4.78mm | 8.170 lbs. |
| 94 | 5″ x 2″ x 0.210″ | 127mm x 50.8mm x 5.33mm | 9.010 lbs. |
| 95 | 5″ x 2″ x 0.250″ | 127mm x 50.8mm x 6.35mm | 10.510 lbs. |
| 96 | 5″ x 2″ x 0.313″ | 127mm x 50.8mm x 7.95mm | 12.700 lbs. |
| 97 | 5″ x 2″ x 0.375 | 127mm x 50.8mm x 9.53mm | 14.710 lbs. |
| 98 | 5″ x 2 1/2″ | 127mm x 63.5mm | |
| 99 | 5″ x 2 1/2″ x 0.150″ | 127mm x 63.5mm x 3.81mm | 7.150 lbs. |
| 100 | 5″ x 2 1/2″ x 0.188″ | 127mm x 63.5mm x 4.78mm | 8.810 lbs. |
| 101 | 5″ x 2 1/2″ x 0.210″ | 127mm x 63.5mm x 5.33mm | 10.060 lbs. |
| 102 | 5″ x 2 1/2″ x 0.250″ | 127mm x 63.5mm x 6.35mm | 11.300 lbs. |
| 103 | 5″ x 2 1/2″ x 0.313″ | 127mm x 63.5mm x 7.95mm | 13.800 lbs. |
| 104 | 5″ x 2 1/2″ x 0.375 | 127mm x 63.5mm x 9.53mm | 16.000 lbs. |
| 105 | 5″ x 3″ | 127mm x 76.2mm | |
| 106 | 5″ x 3″ x 0.125″ | 127mm x 76.2mm x 3.18mm | 6.460 lbs. |
| 107 | 5″ x 3″ x 0.134″ | 127mm x 76.2mm x 3.40mm | 6.890 lbs. |
| 108 | 5″ x 3″ x 0.150″ | 127mm x 76.2mm x 3.81mm | 7.660 lbs. |
| 109 | 5″ x 3″ x 0.188″ | 127mm x 76.2mm x 4.78mm | 9.450 lbs. |
| 110 | 5″ x 3″ x 0.210″ | 127mm x 76.2mm x 5.33mm | 10.510 lbs. |
| 111 | 5″ x 3″ x 0.250″ | 127mm x 76.2mm x 6.35mm | 12.210 lbs. |
| 112 | 5″ x 3″ x 0.313″ | 127mm x 76.2mm x 7.95mm | 14.830 lbs. |
| 113 | 5″ x 3″ x 0.375 | 127mm x 76.2mm x 9.53mm | 17.270 lbs. |
| 114 | 5″ x 4″ | 127mm x 101.6mm | |
| 115 | 5″ x 4″ x 0.125″ | 127mm x 101.6mm x 3.18mm | 7.310 lbs. |
| 116 | 5″ x 4″ x 0.134″ | 127mm x 101.6mm x 3.40mm | 7.810 lbs. |
| 117 | 5″ x 4″ x 0.150″ | 127mm x 101.6mm x 3.81mm | 8.699 lbs. |
| 118 | 5″ x 4″ x 0.188″ | 127mm x 101.6mm x 4.78mm | 10.700 lbs. |
| 119 | 5″ x 4″ x 0.250″ | 127mm x 101.6mm x 6.35mm | 13.910 lbs. |
| 120 | 5″ x 4″ x 0.313″ | 127mm x 101.6mm x 7.95mm | 16.960 lbs. |
| 121 | 5″ x 4″ x 0.375 | 127mm x 101.6mm x 9.53mm | 19.820 lbs. |
| 122 | 6″ x 2″ | 152.4mm x 50.8mm | |
| 123 | 6″ x 2″ x 0.125″ | 152.4mm x 50.8mm x 3.18mm | 6.460 lbs. |
| 124 | 6″ x 2″ x 0.134″ | 152.4mm x 50.8mm x 3.40mm | 6.890 lbs. |
| 125 | 6″ x 2″ x 0.150″ | 152.4mm x 50.8mm x 3.81mm | 7.660 lbs. |
| 126 | 6″ x 2″ x 0.188″ | 152.4mm x 50.8mm x 4.78mm | 9.450 lbs. |
| 127 | 6″ x 2″ x 0.210″ | 152.4mm x 50.8mm x 5.33mm | 10.510 lbs. |
| 128 | 6″ x 2″ x 0.250″ | 152.4mm x 50.8mm x 6.35mm | 12.210 lbs. |
| 129 | 6″ x 2″ x 0.313″ | 152.4mm x 50.8mm x 7.95mm | 14.830 lbs. |
| 130 | 6″ x 2″ x 0.375 | 152.4mm x 50.8mm x 9.53mm | 17.270 lbs. |
| 131 | 6″ x 3″ | 152.4mm x 76.2mm | |
| 132 | 6″ x 3″ x 0.125″ | 152.4mm x 76.2mm x 3.18mm | 7.310 lbs. |
| 133 | 6″ x 3″ x 0.134″ | 152.4mm x 76.2mm x 3.40mm | 7.810 lbs. |
| 134 | 6″ x 3″ x 0.150″ | 152.4mm x 76.2mm x 3.81mm | 8.699 lbs. |
| 135 | 6″ x 3″ x 0.188″ | 152.4mm x 76.2mm x 4.78mm | 10.700 lbs. |
| 136 | 6″ x 3″ x 0.250″ | 152.4mm x 76.2mm x 6.35mm | 13.910 lbs. |
| 137 | 6″ x 3″ x 0.313″ | 152.4mm x 76.2mm x 7.95mm | 16.960 lbs. |
| 138 | 6″ x 3″ x 0.375 | 152.4mm x 76.2mm x 9.53mm | 19.820 lbs. |
| 139 | 6″ x 4″ | 152.4mm x 101.6mm | |
| 140 | 6″ x 4″ x 0.150″ | 152.4mm x 101.6mm x 3.81mm | 9.710 lbs. |
| 141 | 6″ x 4″ x 0.188″ | 152.4mm x 101.6mm x 4.78mm | 12.000 lbs. |
| 142 | 6″ x 4″ x 0.250″ | 152.4mm x 101.6mm x 6.35mm | 15.620 lbs. |
| 143 | 6″ x 4″ x 0.313″ | 152.4mm x 101.6mm x 7.95mm | 19.080 lbs. |
| 144 | 6″ x 4″ x 0.375 | 152.4mm x 101.6mm x 9.53mm | 22.370 lbs. |
| 145 | 6″ x 4″ x 0.500″ | 152.4mm x 101.6mm x 12.70mm | 28.430 lbs. |
| 146 | 7″ x 2″ | 177.8mm x 50.8mm | |
| 147 | 7″ x 2″ x 0.125″ | 177.8mm x 50.8mm x 3.18mm | 7.310 lbs. |
| 148 | 7″ x 2″ x 0.134″ | 177.8mm x 50.8mm x 3.40mm | 7.810 lbs. |
| 149 | 7″ x 2″ x 0.150″ | 177.8mm x 50.8mm x 3.81mm | 8.699 lbs. |
| 150 | 7″ x 2″ x 0.188″ | 177.8mm x 50.8mm x 4.78mm | 10.700 lbs. |
| 151 | 7″ x 2″ x 0.250″ | 177.8mm x 50.8mm x 6.35mm | 13.910 lbs. |
| 152 | 7″ x 2″ x 0.313″ | 177.8mm x 50.8mm x 7.95mm | 16.960 lbs. |
| 153 | 7″ x 2″ x 0.375 | 177.8mm x 50.8mm x 9.53mm | 19.820 lbs. |
| 154 | 7″ x 3″ | 177.8mm x 76.2mm | |
| 155 | 7″ x 3″ x 0.150″ | 177.8mm x 76.2mm x 3.81mm | 9.710 lbs. |
| 156 | 7″ x 3″ x 0.188″ | 177.8mm x 76.2mm x 4.78mm | 12.000 lbs. |
| 157 | 7″ x 3″ x 0.250″ | 177.8mm x 76.2mm x 6.35mm | 15.620 lbs. |
| 158 | 7″ x 3″ x 0.313″ | 177.8mm x 76.2mm x 7.95mm | 19.080 lbs. |
| 159 | 7″ x 3″ x 0.375 | 177.8mm x 76.2mm x 9.53mm | 22.370 lbs. |
| 160 | 7″ x 3″ x 0.500″ | 177.8mm x 76.2mm x 12.70mm | 28.430 lbs. |
| 161 | 7″ x 4″ | 177.8mm x 101.6mm | |
| 162 | 7″ x 4″ x 0.188″ | 177.8mm x 101.6mm x 4.78mm | 13.280 lbs. |
| 163 | 7″ x 4″ x 0.250″ | 177.8mm x 101.6mm x 6.35mm | 17.320 lbs. |
| 164 | 7″ x 4″ x 0.313″ | 177.8mm x 101.6mm x 7.95mm | 21.180 lbs. |
| 165 | 7″ x 4″ x 0.375 | 177.8mm x 101.6mm x 9.53mm | 24.920 lbs. |
| 166 | 7″ x 5″ | 177.8mm x 127mm | |
| 167 | 7″ x 5″ x 0.188″ | 177.8mm x 127mm x 4.78mm | 14.560 lbs. |
| 168 | 7″ x 5″ x 0.250″ | 177.8mm x 127mm x 6.35mm | 19.020 lbs. |
| 169 | 7″ x 5″ x 0.313″ | 177.8mm x 127mm x 7.95mm | 23.330 lbs. |
| 170 | 7″ x 5″ x 0.375 | 177.8mm x 127mm x 9.53mm | 27.480 lbs. |
| 171 | 7″ x 5″ x 0.438″ | 177.8mm x 127mm x 11.13mm | 31.500 lbs. |
| 172 | 7″ x 5″ x 0.500″ | 177.8mm x 127mm x 12.70mm | 35.240 lbs. |
| 173 | 7″ x 5″ x 0.625″ | 177.8mm x 127mm x 15.88mm | 42.260 lbs. |
| 174 | 8″ x 2″ | 203.2mm x 50.8mm | |
| 175 | 8″ x 2″ x 0.150″ | 203.2mm x 50.8mm x 3.81mm | 9.710 lbs. |
| 176 | 8″ x 2″ x 0.188″ | 203.2mm x 50.8mm x 4.78mm | 12.000 lbs. |
| 177 | 8″ x 2″ x 0.250″ | 203.2mm x 50.8mm x 6.35mm | 15.620 lbs. |
| 178 | 8″ x 2″ x 0.313″ | 203.2mm x 50.8mm x 7.95mm | 19.080 lbs. |
| 179 | 8″ x 2″ x 0.375 | 203.2mm x 50.8mm x 9.53mm | 22.370 lbs. |
| 180 | 8″ x 2″ x 0.500″ | 203.2mm x 50.8mm x 12.70mm | 28.430 lbs. |
| 181 | 8″ x 3″ | 203.2mm x 76.2mm | |
| 182 | 8″ x 3″ x 0.188″ | 203.2mm x 76.2mm x 4.78mm | 13.280 lbs. |
| 183 | 8″ x 3″ x 0.250″ | 203.2mm x 76.2mm x 6.35mm | 17.320 lbs. |
| 184 | 8″ x 3″ x 0.313″ | 203.2mm x 76.2mm x 7.95mm | 21.180 lbs. |
| 185 | 8″ x 3″ x 0.375 | 203.2mm x 76.2mm x 9.53mm | 24.920 lbs. |
| 186 | 8″ x 4″ | 203.2mm x 101.6mm | |
| 187 | 8″ x 4″ x 0.188″ | 203.2mm x 101.6mm x 4.78mm | 14.560 lbs. |
| 188 | 8″ x 4″ x 0.250″ | 203.2mm x 101.6mm x 6.35mm | 19.020 lbs. |
| 189 | 8″ x 4″ x 0.313″ | 203.2mm x 101.6mm x 7.95mm | 23.330 lbs. |
| 190 | 8″ x 4″ x 0.375 | 203.2mm x 101.6mm x 9.53mm | 27.480 lbs. |
| 191 | 8″ x 4″ x 0.438″ | 203.2mm x 101.6mm x 11.13mm | 31.500 lbs. |
| 192 | 8″ x 4″ x 0.500″ | 203.2mm x 101.6mm x 12.70mm | 35.240 lbs. |
| 193 | 8″ x 4″ x 0.625″ | 203.2mm x 101.6mm x 15.88mm | 42.260 lbs. |
| 194 | 8″ x 6″ | 203.2mm x 152.4mm | |
| 195 | 8″ x 6″ x 0.188″ | 203.2mm x 152.4mm x 4.78mm | 17.130 lbs. |
| 196 | 8″ x 6″ x 0.250″ | 203.2mm x 152.4mm x 6.35mm | 22.420 lbs. |
| 197 | 8″ x 6″ x 0.313″ | 203.2mm x 152.4mm x 7.95mm | 27.630 lbs. |
| 198 | 8″ x 6″ x 0.375 | 203.2mm x 152.4mm x 9.53mm | 32.580 lbs. |
| 199 | 8″ x 6″ x 0.438″ | 203.2mm x 152.4mm x 11.13mm | 37.500 lbs. |
| 200 | 8″ x 6″ x 0.500″ | 203.2mm x 152.4mm x 12.70mm | 42.050 lbs. |
| 201 | 8″ x 6″ x 0.625″ | 203.2mm x 152.4mm x 15.88mm | 50.760 lbs. |
| 202 | 9″ x 3″ | 228.6mm x 76.2mm | |
| 203 | 9″ x 3″ x 0.188″ | 228.6mm x 76.2mm x 4.78mm | 14.560 lbs. |
| 204 | 9″ x 3″ x 0.250″ | 228.6mm x 76.2mm x 6.35mm | 19.020 lbs. |
| 205 | 9″ x 3″ x 0.313″ | 228.6mm x 76.2mm x 7.95mm | 23.330 lbs. |
| 206 | 9″ x 3″ x 0.375 | 228.6mm x 76.2mm x 9.53mm | 27.480 lbs. |
| 207 | 9″ x 3″ x 0.438″ | 228.6mm x 76.2mm x 11.13mm | 31.500 lbs. |
| 208 | 9″ x 3″ x 0.500″ | 228.6mm x 76.2mm x 12.70mm | 35.240 lbs. |
| 209 | 9″ x 3″ x 0.625″ | 228.6mm x 76.2mm x 15.88mm | 42.260 lbs. |
| 210 | 9″ x 5″ | 203.2mm x 127mm | |
| 211 | 9″ x 5″ x 0.188″ | 203.2mm x 127mm x 4.78mm | 17.130 lbs. |
| 212 | 9″ x 5″ x 0.250″ | 203.2mm x 127mm x 6.35mm | 22.420 lbs. |
| 213 | 9″ x 5″ x 0.313″ | 203.2mm x 127mm x 7.95mm | 27.630 lbs. |
| 214 | 9″ x 5″ x 0.375 | 203.2mm x 127mm x 9.53mm | 32.580 lbs. |
| 215 | 9″ x 5″ x 0.438″ | 203.2mm x 127mm x 11.13mm | 37.500 lbs. |
| 216 | 9″ x 5″ x 0.500″ | 203.2mm x 127mm x 12.70mm | 42.050 lbs. |
| 217 | 9″ x 5″ x 0.625″ | 203.2mm x 127mm x 15.88mm | 50.760 lbs. |
| 218 | 9″ x 7″ | 228.6mm x 177.8mm | |
| 219 | 9″ x 7″ x 0.188″ | 228.6mm x 177.8mm x 4.78mm | 19.630 lbs. |
| 220 | 9″ x 7″ x 0.250″ | 228.6mm x 177.8mm x 6.35mm | 25.820 lbs. |
| 221 | 9″ x 7″ x 0.313″ | 228.6mm x 177.8mm x 7.95mm | 31.840 lbs. |
| 222 | 9″ x 7″ x 0.375 | 228.6mm x 177.8mm x 9.53mm | 37.690 lbs. |
| 223 | 9″ x 7″ x 0.438″ | 228.6mm x 177.8mm x 11.13mm | 43.400 lbs. |
| 224 | 9″ x 7″ x 0.500″ | 228.6mm x 177.8mm x 12.70mm | 48.850 lbs. |
| 225 | 9″ x 7″ x 0.625″ | 228.6mm x 177.8mm x 15.88mm | 59.320 lbs. |
| 226 | 10″ x 2″ | 254mm x 50.8mm | |
| 227 | 10″ x 2″ x 0.188″ | 254mm x 50.8mm x 4.78mm | 14.560 lbs. |
| 228 | 10″ x 2″ x 0.250″ | 254mm x 50.8mm x 6.35mm | 19.020 lbs. |
| 229 | 10″ x 2″ x 0.313″ | 254mm x 50.8mm x 7.95mm | 23.330 lbs. |
| 230 | 10″ x 2″ x 0.375 | 254mm x 50.8mm x 9.53mm | 27.480 lbs. |
| 231 | 10″ x 2″ x 0.438″ | 254mm x 50.8mm x 11.13mm | 31.500 lbs. |
| 232 | 10″ x 2″ x 0.500″ | 254mm x 50.8mm x 12.70mm | 35.240 lbs. |
| 233 | 10″ x 2″ x 0.625″ | 254mm x 50.8mm x 15.88mm | 42.260 lbs. |
| 234 | 10″ x 4″ | 254mm x 101.6mm | |
| 235 | 10″ x 4″ x 0.188″ | 254mm x 101.6mm x 4.78mm | 17.130 lbs. |
| 236 | 10″ x 4″ x 0.250″ | 254mm x 101.6mm x 6.35mm | 22.420 lbs. |
| 237 | 10″ x 4″ x 0.313″ | 254mm x 101.6mm x 7.95mm | 27.630 lbs. |
| 238 | 10″ x 4″ x 0.375 | 254mm x 101.6mm x 9.53mm | 32.580 lbs. |
| 239 | 10″ x 4″ x 0.438″ | 254mm x 101.6mm x 11.13mm | 37.500 lbs. |
| 240 | 10″ x 4″ x 0.500″ | 254mm x 101.6mm x 12.70mm | 42.050 lbs. |
| 241 | 10″ x 4″ x 0.625″ | 254mm x 101.6mm x 15.88mm | 50.760 lbs. |
| 242 | 10″ x 6″ | 254mm x 152.4mm | |
| 243 | 10″ x 6″ x 0.188″ | 254mm x 152.4mm x 4.78mm | 19.630 lbs. |
| 244 | 10″ x 6″ x 0.250″ | 254mm x 152.4mm x 6.35mm | 25.820 lbs. |
| 245 | 10″ x 6″ x 0.313″ | 254mm x 152.4mm x 7.95mm | 31.840 lbs. |
| 246 | 10″ x 6″ x 0.375 | 254mm x 152.4mm x 9.53mm | 37.690 lbs. |
| 247 | 10″ x 6″ x 0.438″ | 254mm x 152.4mm x 11.13mm | 43.400 lbs. |
| 248 | 10″ x 6″ x 0.500″ | 254mm x 152.4mm x 12.70mm | 48.850 lbs. |
| 249 | 10″ x 6″ x 0.625″ | 254mm x 152.4mm x 15.88mm | 59.320 lbs. |
| 250 | 10″ x 8″ | ||
| Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
Consultez les Spécifications Techniques et Grandeurs Disponibles

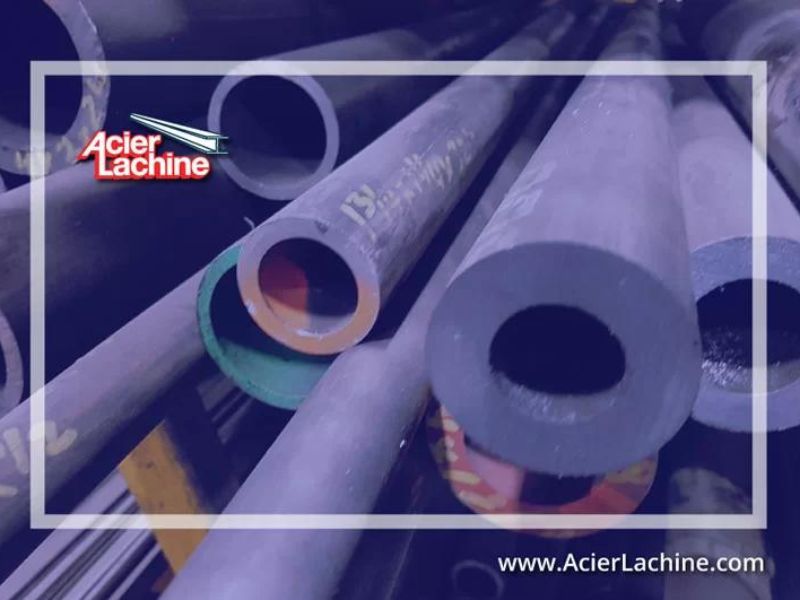

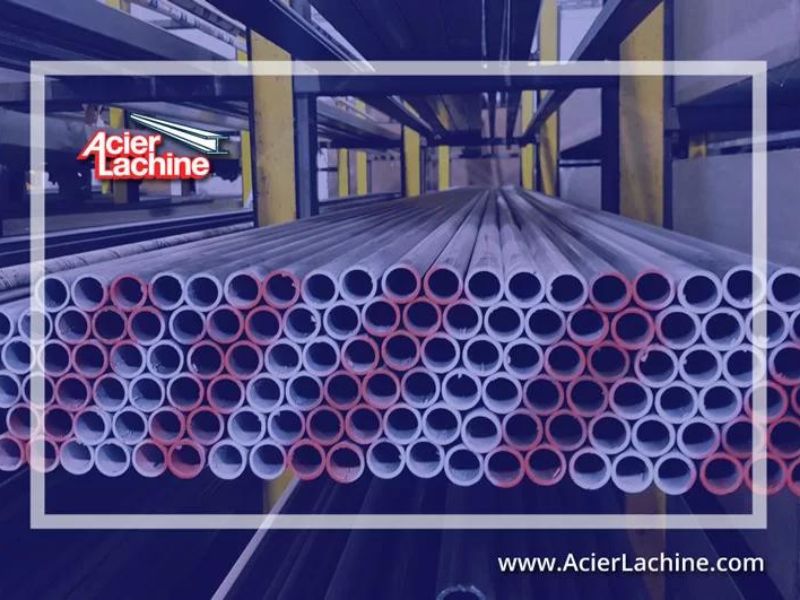

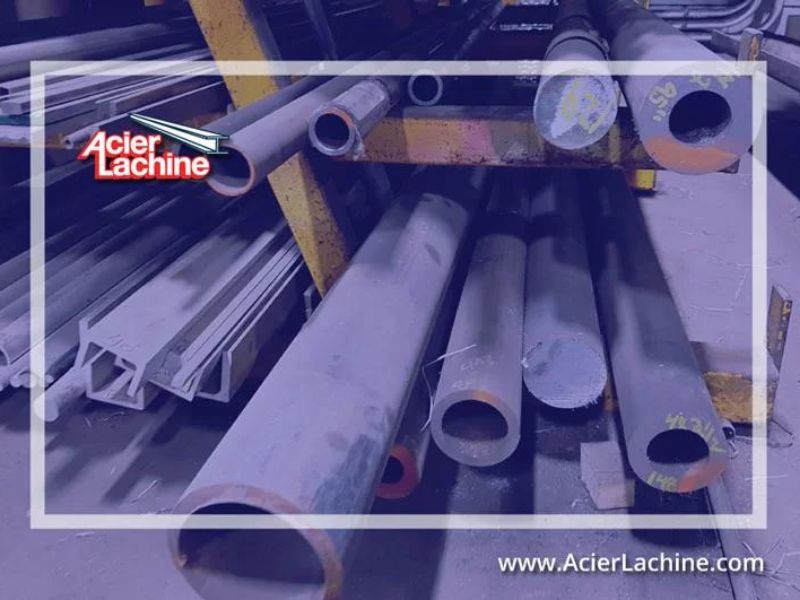

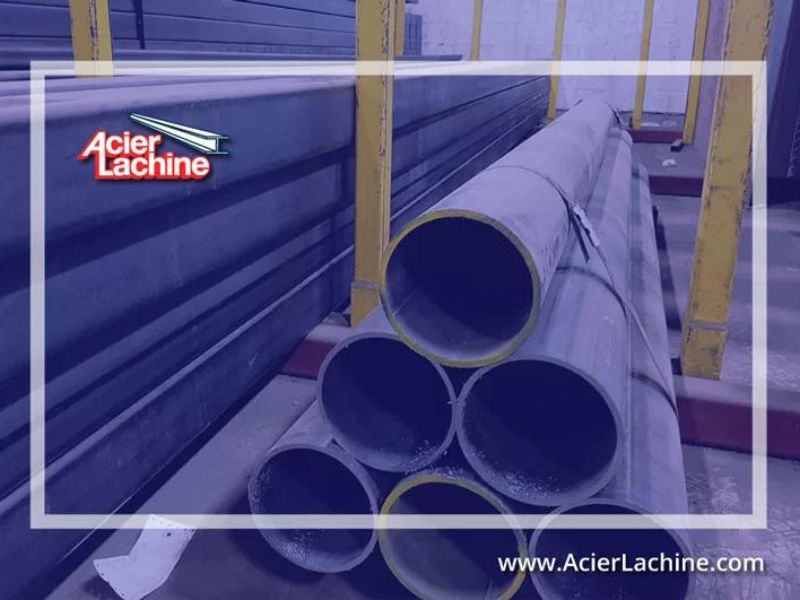

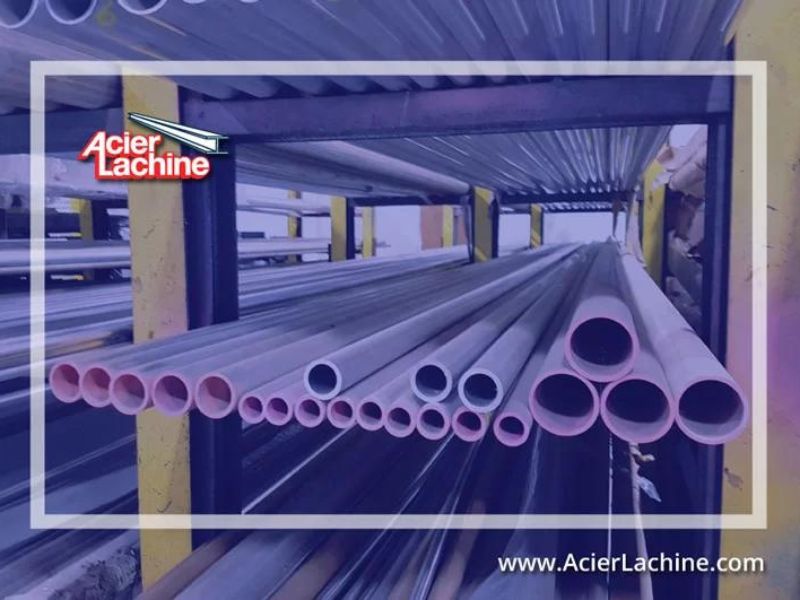

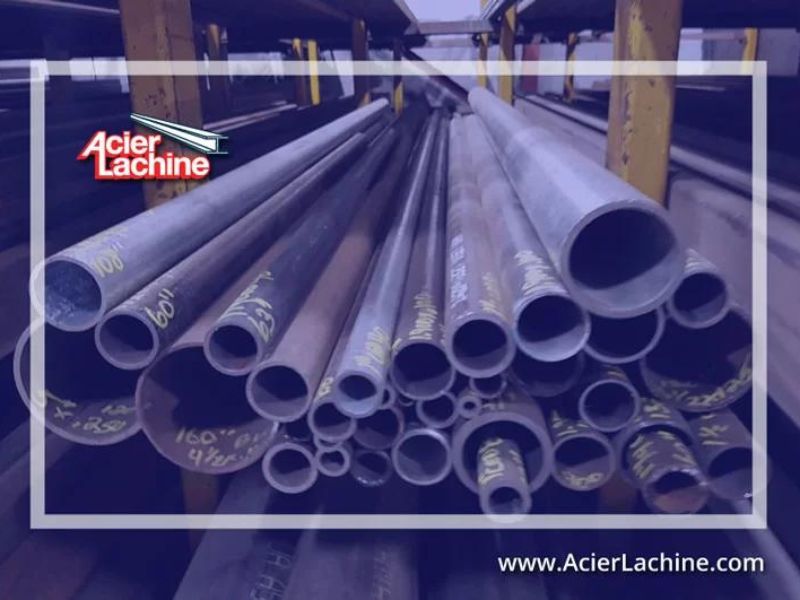

TUBES RONDS – LAMINÉ À CHAUD (HSS), HRPO, CREW
Normes (ASTM): A500 B & C, A513
Grandeurs disponibles: 20′, 24′ & 48′ ou couper sur mesure
Le Tube Rond en Acier est un tube d’acier de construction soudé avec un cordon de soudure interne. Disponible en A513 ou A500 Grade A ET B en fonction de l’épaisseur de sa taille et du mur.
UTILISATION:
Le tube en acier rond est largement utilisé dans la maintenance industrielle, pour les outils agricoles, le matériel de transport, d’ornement, etc. Les tubes (HSS) doivent remplir une fonction structurale dans le cadre d’un concept d’ingénierie, les propriétés physiques et la qualité commerciale de ces derniers sont garanties.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
|---|---|---|---|
| 1 | 1.000″ en diamètre | 25.4mm en diamètre | |
| 2 | 1.000″ x 0.065″ | 25.4mm x 1.65mm | 0.649 lbs. |
| 3 | 1.000″ x 0.083″ | 25.4mm x 2.11mm | 0.813 lbs. |
| 4 | 1.000″ x 0.095″ | 25.4mm x 2.41mm | 0.920 lbs. |
| 5 | 1.050″ en diamètre | 26.7mm en diamètre | |
| 6 | 1.050″ x 0.095″ | 26.7mm x 2.41mm | 0.950 lbs. |
| 7 | 1.050″ x 0.100″ | 26.7mm x 2.54mm | 1.010 lbs. |
| 8 | 1.050″ x 0.110″ | 26.7mm x 2.79mm | 1.110 lbs. |
| 9 | 1.050″ x 0.113″ | 26.7mm x 2.87mm | 1.130 lbs. |
| 10 | 1.050″ x 0.125″ | 26.7mm x 3.18mm | 1.230 lbs. |
| 11 | 1.250″ en diamètre | 31.8mm en diamètre | |
| 12 | 1.250″ x 0.100″ | 31.8mm x 2.54mm | 1.230 lbs. |
| 13 | 1.250″ x 0.125″ | 31.8mm x 3.18mm | 1.510 lbs. |
| 14 | 1.250″ x 0.134″ | 31.8mm x 3.40mm | 1.600 lbs. |
| 15 | 1.315″ en diamètre | 33.4mm en diamètre | |
| 16 | 1.315″ x 0.100″ | 33.4mm x 2.54mm | 1.300 lbs. |
| 17 | 1.315″ x 0.110″ | 33.4mm x 2.79mm | 1.410 lbs. |
| 18 | 1.315″ x 0.125″ | 33.4mm x 3.18mm | 1.590 lbs. |
| 19 | 1.660″ en diamètre | 42.2mm en diamètre | |
| 20 | 1.660″ x 0.100″ | 42.2mm x 2.54mm | 1.670 lbs. |
| 21 | 1.660″ x 0.110″ | 42.2mm x 2.79mm | 1.820 lbs. |
| 22 | 1.660″ x 0.125″ | 42.2mm x 3.18mm | 2.050 lbs. |
| 23 | 1.660″ x 0.134″ | 42.2mm x 3.40mm | 2.170 lbs. |
| 24 | 1.875″ en diamètre | 47.6mm en diamètre | |
| 25 | 1.875″ x 0.100″ | 47.6mm x 2.54mm | 1.900 lbs. |
| 26 | 1.875″ x 0.125″ | 47.6mm x 3.18mm | 2.340 lbs. |
| 27 | 1.900″ en diamètre | 48.3mm en diamètre | |
| 28 | 1.900″ x 0.100″ | 48.3mm x 2.54mm | 1.920 lbs. |
| 29 | 1.900″ x 0.110″ | 48.3mm x 2.79mm | 2.100 lbs. |
| 30 | 1.900″ x 0.125″ | 48.3mm x 3.18mm | 2.380 lbs. |
| 31 | 1.900″ x 0.150″ | 48.3mm x 3.81mm | 2.800 lbs. |
| 32 | 1.900″ x 0.188″ | 48.3mm x 4.78mm | 3.430 lbs. |
| 33 | 1.900″ x 0.250″ | 48.3mm x 6.35mm | 4.410 lbs. |
| 34 | 2.000″ en diamètre | 50.8mm en diamètre | |
| 35 | 2.000″ x 0.100″ | 50.8mm x 2.54mm | 2.030 lbs. |
| 36 | 2.000″ x 0.125″ | 50.8mm x 3.18mm | 2.500 lbs. |
| 37 | 2.000″ x 0.150″ | 50.8mm x 3.81mm | 2.960 lbs. |
| 38 | 2.000″ x 0.188″ | 50.8mm x 4.78mm | 3.640 lbs. |
| 39 | 2.375″ en diamètre | 60.3mm en diamètre | |
| 40 | 2.375″ x 0.100″ | 60.3mm x 2.54mm | 2.430 lbs. |
| 41 | 2.375″ x 0.125″ | 60.3mm x 3.18mm | 3.010 lbs. |
| 42 | 2.375″ x 0.150″ | 60.3mm x 3.81mm | 3.570 lbs. |
| 43 | 2.375″ x 0.188″ | 60.3mm x 4.78mm | 4.400 lbs. |
| 44 | 2.375″ x 0.250″ | 60.3mm x 6.35mm | 5.680 lbs. |
| 45 | 2.500″ en diamètre | 63.5mm en diamètre | |
| 46 | 2.500″ x 0.150″ | 63.5mm x 3.81mm | 3.770 lbs. |
| 47 | 2.500″ x 0.188″ | 63.5mm x 4.78mm | 4.650 lbs. |
| 48 | 2.500″ x 0.250″ | 63.5mm x 6.35mm | 6.020 lbs. |
| 49 | 2.750″ en diamètre | 69.9mm en diamètre | |
| 50 | 2.750″ x 0.150″ | 69.9mm x 3.81mm | 4.180 lbs. |
| 51 | 2.750″ x 0.188″ | 69.9mm x 4.78mm | 5.150 lbs. |
| 52 | 2.750″ x 0.250″ | 69.9mm x 6.35mm | 6.690 lbs. |
| 53 | 2.875″ en diamètre | 73.0mm en diamètre | |
| 54 | 2.875″ x 0.150″ | 73.0mm x 3.81mm | 4.370 lbs. |
| 55 | 2.875″ x 0.188″ | 73.0mm x 4.78mm | 5.400 lbs. |
| 56 | 2.875″ x 0.250″ | 73.0mm x 6.35mm | 7.010 lbs. |
| 57 | 3.000″ en diamètre | 76.2mm en diamètre | |
| 58 | 3.000″ x 0.134″ | 76.2mm x 3.40mm | 4.100 lbs. |
| 59 | 3.000″ x 0.150″ | 76.2mm x 3.81mm | 4.570 lbs. |
| 60 | 3.000″ x 0.188″ | 76.2mm x 4.78mm | 5.660 lbs. |
| 61 | 3.000″ x 0.250″ | 76.2mm x 6.35mm | 7.350 lbs. |
| 62 | 3.500″ en diamètre | 88.9mm en diamètre | |
| 63 | 3.500″ x 0.150″ | 88.9mm x 3.81mm | 5.370 lbs. |
| 64 | 3.500″ x 0.188″ | 88.9mm x 4.78mm | 6.660 lbs. |
| 65 | 3.500″ x 0.250″ | 88.9mm x 6.35mm | 8.690 lbs. |
| 66 | 3.500″ x 0.313″ | 88.9mm x 7.95mm | 10.660 lbs. |
| 67 | 3.750″ en diamètre | 95.3mm en diamètre | |
| 68 | 3.750″ x 0.150″ | 95.3mm x 3.81mm | 5.780 lbs. |
| 69 | 3.750″ x 0.188″ | 95.3mm x 4.78mm | 7.160 lbs. |
| 70 | 3.750″ x 0.210″ | 95.3mm x 5.33mm | 7.950 lbs. |
| 71 | 3.750″ x 0.250″ | 95.3mm x 6.35mm | 9.360 lbs. |
| 72 | 3.750″ x 0.313″ | 95.3mm x 7.95mm | 11.500 lbs. |
| 73 | 4.000″ en diamètre | 101,6mm en diamètre | |
| 74 | 4.000″ x 0.125″ | 101,6mm x 3.18mm | 5.170 lbs. |
| 75 | 4.000″ x 0.134″ | 101,6mm x 3.40mm | 5.530 lbs. |
| 76 | 4.000″ x 0.150″ | 101,6mm x 3.81mm | 6.170 lbs. |
| 77 | 4.000″ x 0.188″ | 101,6mm x 4.78mm | 7.670 lbs. |
| 78 | 4.000″ x 0.210″ | 101,6mm x 5.33mm | 8.510 lbs. |
| 79 | 4.000″ x 0.250″ | 101,6mm x 6.35mm | 10.020 lbs. |
| 80 | 4.000″ x 0.313″ | 101,6mm x 7.95mm | 12.340 lbs. |
| 81 | 4.000″ x 0.375 | 101,6mm x 9.53mm | 14.520 lbs. |
| 82 | 4.500″ en diamètre | 114.3mm en diamètre | |
| 83 | 4.500″ x 0.125″ | 114.3mm x 3.18mm | 5.850 lbs. |
| 84 | 4.500″ x 0.188″ | 114.3mm x 4.78mm | 8.680 lbs. |
| 85 | 4.500″ x 0.250″ | 114.3mm x 6.35mm | 11.360 lbs. |
| 86 | 4.500″ x 0.313″ | 114.3mm x 7.95mm | 14.010 lbs. |
| 87 | 4.500″ x 0.375 | 114.3mm x 9.53mm | 16.540 lbs. |
| 88 | 4.750″ en diamètre | 120.7mm en diamètre | |
| 89 | 4.750″ x 0.188″ | 120.7mm x 4.78mm | 9.140 lbs. |
| 90 | 4.750″ x 0.250″ | 120.7mm x 6.35mm | 12.000 lbs. |
| 91 | 4.750″ x 0.313″ | 120.7mm x 7.95mm | 14.800 lbs. |
| 92 | 5.000″ en diamètre | 127mm en diamètre | |
| 93 | 5.000″ x 0.125″ | 127mm x 3.18mm | 6.840 lbs. |
| 94 | 5.000″ x 0.150″ | 127mm x 3.81mm | 7.780 lbs. |
| 95 | 5.000″ x 0.188″ | 127mm x 4.78mm | 9.670 lbs. |
| 96 | 5.000″ x 0.250″ | 127mm x 6.35mm | 12.690 lbs. |
| 97 | 5.000″ x 0.313″ | 127mm x 7.95mm | 15.690 lbs. |
| 98 | 5.000″ x 0.375 | 127mm x 9.53mm | 18.540 lbs. |
| 99 | 5.562″ en diamètre | 141.3mm en diamètre | |
| 100 | 5.562″ x 0.188″ | 141.3mm x 4.78mm | 10.800 lbs. |
| 101 | 5.562″ x 0.250″ | 141.3mm x 6.35mm | 14.200 lbs. |
| 102 | 5.562″ x 0.313″ | 141.3mm x 7.95mm | 17.600 lbs. |
| 103 | 5.562″ x 0.375 | 141.3mm x 9.53mm | 20.800 lbs. |
| 104 | 6.000″ en diamètre | 152.4mm en diamètre | |
| 105 | 6.000″ x 0.125″ | 152.4mm x 3.18mm | 7.840 lbs. |
| 106 | 6.000″ x 0.188″ | 152.4mm x 4.78mm | 11.680 lbs. |
| 107 | 6.000″ x 0.250″ | 152.4mm x 6.35mm | 15.370 lbs. |
| 108 | 6.000″ x 0.313″ | 152.4mm x 7.95mm | 19.030 lbs. |
| 109 | 6.000″ x 0.375 | 152.4mm x 9.53mm | 22.550 lbs. |
| 110 | 6.625″ en diamètre | 168.3mm en diamètre | |
| 111 | 6.625″ x 0.125″ | 168.3mm x 3.18mm | 8.680 lbs. |
| 112 | 6.625″ x 0.188″ | 168.3mm x 4.78mm | 13.000 lbs. |
| 113 | 6.625″ x 0.250″ | 168.3mm x 6.35mm | 17.020 lbs. |
| 114 | 6.625″ x 0.313″ | 168.3mm x 7.95mm | 21.100 lbs. |
| 115 | 6.625″ x 0.375 | 168.3mm x 9.53mm | 25.100 lbs. |
| 116 | 7.000″ en diamètre | 177.8mm en diamètre | |
| 117 | 7.000″ x 0.188″ | 177.8mm x 4.78mm | 13.690 lbs. |
| 118 | 7.000″ x 0.250″ | 177.8mm x 6.35mm | 18.040 lbs. |
| 119 | 7.000″ x 0.313″ | 177.8mm x 7.95mm | 22.370 lbs. |
| 120 | 7.000″ x 0.375 | 177.8mm x 9.53mm | 26.560 lbs. |
| 121 | 7.500″ en diamètre | 190.5mm en diamètre | |
| 122 | 7.500″ x 0.188″ | 190.5mm x 4.78mm | 14.700 lbs. |
| 123 | 7.500″ x 0.250″ | 190.5mm x 6.35mm | 19.400 lbs. |
| 124 | 7.500″ x 0.313″ | 190.5mm x 7.95mm | 24.000 lbs. |
| 125 | 7.500″ x 0.375 | 190.5mm x 9.53mm | 28.500 lbs. |
| 126 | 8.625″ en diamètre | 219.1mm en diamètre | |
| 127 | 8.625″ x 0.188″ | 219.1mm x 4.78mm | 16.940 lbs. |
| 128 | 8.625″ x 0.250″ | 219.1mm x 6.35mm | 22.360 lbs. |
| 129 | 8.625″ x 0.313″ | 219.1mm x 7.95mm | 27.790 lbs. |
| 130 | 8.625″ x 0.375 | 219.1mm x 9.53mm | 33.040 lbs. |
| 131 | 8.625″ x 0.438″ | 219.1mm x 11.13mm | 38.400 lbs. |
| 132 | 8.625″ x 0.500″ | 219.1mm x 12.70mm | 43.390 lbs. |
| 133 | 10.750″ en diamètre | 273.1mm en diamètre | |
| 134 | 10.750″ x 0.250″ | 273.1mm x 6.35mm | 28.000 lbs. |
| 135 | 10.750″ x 0.313″ | 273.1mm x 7.95mm | 34.800 lbs. |
| 136 | 10.750″ x 0.375 | 273.1mm x 9.53mm | 41.600 lbs. |
| 137 | 10.750″ x 0.438″ | 273.1mm x 11.13mm | 48.200 lbs. |
| 138 | 10.750″ x 0.500″ | 273.1mm x 12.70mm | 54.700 lbs. |
| 139 | 12.750″ en diamètre | 323.9mm en diamètre | |
| 140 | 12.750″ x 0.250″ | 323.9mm x 6.35mm | 33.400 lbs. |
| 141 | 12.750″ x 0.313″ | 323.9mm x 7.95mm | 41.600 lbs. |
| 142 | 12.750″ x 0.375 | 323.9mm x 9.53mm | 49.600 lbs. |
| 143 | 12.750″ x 0.438″ | 323.9mm x 11.13mm | 57.500 lbs. |
| 144 | 12.750″ x 0.500″ | 323.9mm x 12.70mm | 65.400 lbs. |
| 145 | 14.000″ en diamètre | 355.6mm en diamètre | |
| 146 | 14.000″ x 0.250″ | 355.6mm x 6.35mm | 36.800 lbs. |
| 147 | 14.000″ x 0.313″ | 355.6mm x 7.95mm | 45.800 lbs. |
| 148 | 14.000″ x 0.375 | 355.6mm x 9.53mm | 54.700 lbs. |
| 149 | 14.000″ x 0.438″ | 355.6mm x 11.13mm | 63.500 lbs. |
| 150 | 14.000″ x 0.500″ | 355.6mm x 12.70mm | 72.200 lbs. |
| 151 | 16.000″ en diamètre | 406.4mm en diamètre | |
| 152 | 16.000″ x 0.250″ | 406.4mm x 6.35mm | 42.100 lbs. |
| 153 | 16.000″ x 0.313″ | 406.4mm x 7.95mm | 52.500 lbs. |
| 154 | 16.000″ x 0.375 | 406.4mm x 9.53mm | 62.700 lbs. |
| 155 | 16.000″ x 0.438″ | 406.4mm x 11.13mm | 72.900 lbs. |
| 156 | 16.000″ x 0.500″ | 406.4mm x 12.70mm | 82.900 lbs. |
| Dimensions en Pouce | Dimensions en MM | Poids: Lb/Pi lin. |
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUBES RONDS MÉCANIQUES – DOM, CDS, HFS
Normes (ASTM): A513 type 5, A519, A519/A106
Grandeurs disponibles: de 17′ à 23’11 » ou couper sur mesure
| wdt_ID | Diamètre Extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids: Lb/Pi lin |
|---|---|---|---|---|
| 1 | 0.250″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 2 | 0.250″ | 0.152″ | 0.049″ | 0.105 lbs. |
| 3 | 0.250″ | 0.180″ | 0.035″ | 0.080 lbs. |
| 4 | 0.250″ | 0.194″ | 0.028″ | 0.066 lbs. |
| 5 | 0.313″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 6 | 0.313″ | 0.215″ | 0.049″ | 0.138 lbs. |
| 7 | 0.313″ | 0.243″ | 0.035″ | 0.104 lbs. |
| 8 | 0.313″ | 0.257″ | 0.028″ | 0.085 lbs. |
| 9 | 0.375″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 10 | 0.375″ | 0.135″ | 0.120″ | 0.327 lbs. |
| 11 | 0.375″ | 0.183″ | 0.065″ | 0.172 lbs. |
| 12 | 0.375″ | 0.209″ | 0.083″ | 0.259 lbs. |
| 13 | 0.375″ | 0.245″ | 0.065″ | 0.215 lbs. |
| 14 | 0.375″ | 0.277″ | 0.049″ | 0.171 lbs. |
| 15 | 0.375″ | 0.305″ | 0.035″ | 0.127 lbs. |
| 16 | 0.375″ | 0.319″ | 0.028″ | 0.104 lbs. |
| 17 | 0.500″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 18 | 0.500″ | 0.188″ | 0.156″ | 0.573 lbs. |
| 19 | 0.500″ | 0.260″ | 0.120″ | 0.487 lbs. |
| 20 | 0.500″ | 0.282″ | 0.109″ | 0.455 lbs. |
| 21 | 0.500″ | 0.334″ | 0.083″ | 0.370 lbs. |
| 22 | 0.500″ | 0.370″ | 0.065″ | 0.302 lbs. |
| 23 | 0.500″ | 0.384″ | 0.058″ | 0.274 lbs. |
| 24 | 0.500″ | 0.402″ | 0.049″ | 0.236 lbs. |
| 25 | 0.500″ | 0.430″ | 0.035″ | 0.174 lbs. |
| 26 | 0.500″ | 0.444″ | 0.028″ | 0.141 lbs. |
| 27 | 0.563″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 28 | 0.563″ | 0.323″ | 0.120″ | 0.568 lbs. |
| 29 | 0.563″ | 0.397″ | 0.083″ | 0.481 lbs. |
| 30 | 0.563″ | 0.433″ | 0.065″ | 0.346 lbs. |
| 31 | 0.563″ | 0.493″ | 0.035″ | 0.197 lbs. |
| 32 | 0.625″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 33 | 0.625″ | 0.249″ | 0.188″ | 0.877 lbs. |
| 34 | 0.625″ | 0.313″ | 0.156″ | 0.781 lbs. |
| 35 | 0.625″ | 0.357″ | 0.134″ | 0.703 lbs. |
| 36 | 0.625″ | 0.385″ | 0.120″ | 0.647 lbs. |
| 37 | 0.625″ | 0.407″ | 0.109″ | 0.601 lbs. |
| 38 | 0.625″ | 0.459″ | 0.083″ | 0.481 lbs. |
| 39 | 0.625″ | 0.495″ | 0.065″ | 0.389 lbs. |
| 40 | 0.625″ | 0.509″ | 0.058″ | 0.351 lbs. |
| 41 | 0.625″ | 0.527″ | 0.049″ | 0.301 lbs. |
| 42 | 0.625″ | 0.555″ | 0.035″ | 0.221 lbs. |
| 43 | 0.688″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 44 | 0.688″ | 0.448″ | 0.120″ | 0.728 lbs. |
| 45 | 0.688″ | 0.470″ | 0.109″ | 0.674 lbs. |
| 46 | 0.688″ | 0.498″ | 0.095″ | 0.602 lbs. |
| 47 | 0.688″ | 0.522″ | 0.083″ | 0.536 lbs. |
| 48 | 0.688″ | 0.558″ | 0.065″ | 0.433 lbs. |
| 49 | 0.750″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 50 | 0.750″ | 0.250″ | 0.250″ | 1.335 lbs. |
| 51 | 0.750″ | 0.312″ | 0.219″ | 1.242 lbs. |
| 52 | 0.750″ | 0.374″ | 0.188″ | 1.128 lbs. |
| 53 | 0.750″ | 0.438″ | 0.156″ | 0.990 lbs. |
| 54 | 0.750″ | 0.482″ | 0.134″ | 0.882 lbs. |
| 55 | 0.750″ | 0.510″ | 0.120″ | 0.807 lbs. |
| 56 | 0.750″ | 0.532″ | 0.109″ | 0.746 lbs. |
| 57 | 0.750″ | 0.560″ | 0.095″ | 0.665 lbs. |
| 58 | 0.750″ | 0.584″ | 0.083″ | 0.591 lbs. |
| 59 | 0.750″ | 0.620″ | 0.065″ | 0.476 lbs. |
| 60 | 0.750″ | 0.652″ | 0.049″ | 0.367 lbs. |
| 61 | 0.750″ | 0.680″ | 0.035″ | 0.267 lbs. |
| 62 | 0.813″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 63 | 0.813″ | 0.375″ | 0.250″ | 1.669 lbs. |
| 64 | 0.813″ | 0.499″ | 0.188″ | 1.379 lbs. |
| 65 | 0.813″ | 0.563″ | 0.156″ | 1.198 lbs. |
| 66 | 0.813″ | 0.573″ | 0.120″ | 0.888 lbs. |
| 67 | 0.813″ | 0.607″ | 0.134″ | 1.060 lbs. |
| 68 | 0.813″ | 0.623″ | 0.095″ | 0.729 lbs. |
| 69 | 0.813″ | 0.635″ | 0.120″ | 0.968 lbs. |
| 70 | 0.813″ | 0.647″ | 0.083″ | 0.647 lbs. |
| 71 | 0.813″ | 0.657″ | 0.109″ | 0.892 lbs. |
| 72 | 0.813″ | 0.683″ | 0.065″ | 0.519 lbs. |
| 73 | 0.813″ | 0.685″ | 0.095″ | 0.791 lbs. |
| 74 | 0.813″ | 0.709″ | 0.083″ | 0.702 lbs. |
| 75 | 0.813″ | 0.745″ | 0.065″ | 0.562 lbs. |
| 76 | 0.813″ | 0.759″ | 0.058″ | 0.506 lbs. |
| 77 | 0.813″ | 0.777″ | 0.049″ | 0.432 lbs. |
| 78 | 0.813″ | 0.870″ | 0.065″ | 0.649 lbs. |
| 79 | 0.813″ | 0.902″ | 0.049″ | 0.498 lbs. |
| 80 | 1.000″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 81 | 1.000″ | 0.250″ | 0.375″ | 2.503 lbs. |
| 82 | 1.000″ | 0.374″ | 0.313″ | 2.297 lbs. |
| 83 | 1.000″ | 0.500″ | 0.250″ | 2.003 lbs. |
| 84 | 1.000″ | 0.562″ | 0.219″ | 1.827 lbs. |
| 85 | 1.000″ | 0.624″ | 0.188″ | 1.630 lbs. |
| 86 | 1.000″ | 0.688″ | 0.156″ | 1.406 lbs. |
| 87 | 1.000″ | 0.732″ | 0.134″ | 1.239 lbs. |
| 88 | 1.000″ | 0.760″ | 0.120″ | 1.128 lbs. |
| 89 | 1.000″ | 0.782″ | 0.109″ | 1.037 lbs. |
| 90 | 1.000″ | 0.810″ | 0.095″ | 0.918 lbs. |
| 91 | 1.000″ | 0.834″ | 0.083″ | 0.813 lbs. |
| 92 | 1.063″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 93 | 1.063″ | 0.563″ | 0.250″ | 2.170 lbs. |
| 94 | 1.063″ | 0.687″ | 0.188″ | 1.757 lbs. |
| 95 | 1.063″ | 0.751″ | 0.156″ | 1.511 lbs. |
| 96 | 1.063″ | 0.823″ | 0.120″ | 1.209 lbs. |
| 97 | 1.063″ | 0.845″ | 0.109″ | 1.111 lbs. |
| 98 | 1.063″ | 0.873″ | 0.095″ | 0.982 lbs. |
| 99 | 1.063″ | 0.899″ | 0.083″ | 0.870 lbs. |
| 100 | 1.125″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 101 | 1.125″ | 0.499″ | 0.313″ | 2.714 lbs. |
| 102 | 1.125″ | 0.563″ | 0.281″ | 2.533 lbs. |
| 103 | 1.125″ | 0.625″ | 0.250″ | 2.336 lbs. |
| 104 | 1.125″ | 0.687″ | 0.219″ | 2.119 lbs. |
| 105 | 1.125″ | 0.749″ | 0.188″ | 1.881 lbs. |
| 106 | 1.125″ | 0.813″ | 0.156″ | 1.614 lbs. |
| 107 | 1.125″ | 0.857″ | 0.134″ | 1.418 lbs. |
| 108 | 1.125″ | 0.885″ | 0.120″ | 1.288 lbs. |
| 109 | 1.125″ | 0.907″ | 0.109″ | 1.183 lbs. |
| 110 | 1.125″ | 0.959″ | 0.083″ | 0.924 lbs. |
| 111 | 1.125″ | 0.995″ | 0.065″ | 0.736 lbs. |
| 112 | 1.188″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 113 | 1.188″ | 0.688″ | 0.250″ | 2.504 lbs. |
| 114 | 1.188″ | 0.812″ | 0.188″ | 2.008 lbs. |
| 115 | 1.188″ | 1.058″ | 0.065″ | 0.780 lbs. |
| 116 | 1.250″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 117 | 1.250″ | 0.500″ | 0.375″ | 3.504 lbs. |
| 118 | 1.250″ | 0.624″ | 0.313″ | 3.132 lbs. |
| 119 | 1.250″ | 0.750″ | 0.250″ | 2.670 lbs. |
| 120 | 1.250″ | 0.812″ | 0.219″ | 2.411 lbs. |
| 121 | 1.250″ | 0.874″ | 0.188″ | 2.132 lbs. |
| 122 | 1.250″ | 0.938″ | 0.156″ | 1.823 lbs. |
| 123 | 1.250″ | 0.982″ | 0.134″ | 1.597 lbs. |
| 124 | 1.250″ | 1.010″ | 0.120″ | 1.448 lbs. |
| 125 | 1.250″ | 1.032″ | 0.109″ | 1.328 lbs. |
| 126 | 1.250″ | 1.060″ | 0.095″ | 1.172 lbs. |
| 127 | 1.250″ | 1.084″ | 0.083″ | 1.034 lbs. |
| 128 | 1.250″ | 1.120″ | 0.065″ | 0.823 lbs. |
| 129 | 1.313″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 130 | 1.313″ | 0.563″ | 0.375″ | 3.757 lbs. |
| 131 | 1.313″ | 0.813″ | 0.250″ | 2.838 lbs. |
| 132 | 1.313″ | 0.875″ | 0.219″ | 2.559 lbs. |
| 133 | 1.313″ | 0.937″ | 0.188″ | 2.259 lbs. |
| 134 | 1.313″ | 1.001″ | 0.156″ | 1.928 lbs. |
| 135 | 1.313″ | 1.045″ | 0.134″ | 1.687 lbs. |
| 136 | 1.313″ | 1.073″ | 0.120″ | 1.529 lbs. |
| 137 | 1.375″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 138 | 1.375″ | 0.625″ | 0.375″ | 4.005 lbs. |
| 139 | 1.375″ | 0.749″ | 0.313″ | 3.550 lbs. |
| 140 | 1.375″ | 0.813″ | 0.281″ | 3.283 lbs. |
| 141 | 1.375″ | 0.875″ | 0.250″ | 3.004 lbs. |
| 142 | 1.375″ | 0.937″ | 0.219″ | 2.704 lbs. |
| 143 | 1.375″ | 0.999″ | 0.188″ | 2.383 lbs. |
| 144 | 1.375″ | 1.063″ | 0.156″ | 2.031 lbs. |
| 145 | 1.375″ | 1.107″ | 0.134″ | 1.776 lbs. |
| 146 | 1.375″ | 1.135″ | 0.120″ | 1.608 lbs. |
| 147 | 1.375″ | 1.185″ | 0.095″ | 1.299 lbs. |
| 148 | 1.375″ | 1.245″ | 0.065″ | 0.909 lbs. |
| 149 | 1.375″ | 1.277″ | 0.049″ | 0.694 lbs. |
| 150 | 1.438″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 151 | 1.438″ | 0.938″ | 0.250″ | 3.172 lbs. |
| 152 | 1.438″ | 1.000″ | 0.219″ | 2.851 lbs. |
| 153 | 1.438″ | 1.062″ | 0.188″ | 2.510 lbs. |
| 154 | 1.438″ | 1.126″ | 0.156″ | 2.136 lbs. |
| 155 | 1.500″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 156 | 1.500″ | 0.500″ | 0.500″ | 5.340 lbs. |
| 157 | 1.500″ | 0.624″ | 0.438″ | 4.968 lbs. |
| 158 | 1.500″ | 0.750″ | 0.375″ | 4.506 lbs. |
| 159 | 1.500″ | 0.874″ | 0.313″ | 3.968 lbs. |
| 160 | 1.500″ | 0.938″ | 0.281″ | 3.658 lbs. |
| 161 | 1.500″ | 1.000″ | 0.250″ | 3.338 lbs. |
| 162 | 1.500″ | 1.062″ | 0.219″ | 2.996 lbs. |
| 163 | 1.500″ | 1.124″ | 0.188″ | 2.634 lbs. |
| 164 | 1.500″ | 1.188″ | 0.156″ | 2.239 lbs. |
| 165 | 1.500″ | 1.260″ | 0.120″ | 1.769 lbs. |
| 166 | 1.500″ | 1.282″ | 0.109″ | 1.619 lbs. |
| 167 | 1.500″ | 1.310″ | 0.095″ | 1.426 lbs. |
| 168 | 1.500″ | 1.334″ | 0.083″ | 1.256 lbs. |
| 169 | 1.500″ | 1.370″ | 0.065″ | 0.996 lbs. |
| 170 | 1.563″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 171 | 1.563″ | 0.813″ | 0.375″ | 4.758 lbs. |
| 172 | 1.563″ | 1.063″ | 0.250″ | 3.506 lbs. |
| 173 | 1.563″ | 1.251″ | 0.156″ | 2.344 lbs. |
| 174 | 1.563″ | 1.323″ | 0.120″ | 1.849 lbs. |
| 175 | 1.625″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 176 | 1.625″ | 0.625″ | 0.500″ | 6.008 lbs. |
| 177 | 1.625″ | 0.875″ | 0.375″ | 5.006 lbs. |
| 178 | 1.625″ | 0.999″ | 0.313″ | 4.386 lbs. |
| 179 | 1.625″ | 1.063″ | 0.281″ | 4.033 lbs. |
| 180 | 1.625″ | 1.125″ | 0.250″ | 3.671 lbs. |
| 181 | 1.625″ | 1.187″ | 0.219″ | 3.289 lbs. |
| 182 | 1.625″ | 1.249″ | 0.188″ | 2.885 lbs. |
| 183 | 1.625″ | 1.313″ | 0.156″ | 2.447 lbs. |
| 184 | 1.625″ | 1.385″ | 0.120″ | 1.929 lbs. |
| 185 | 1.625″ | 1.435″ | 0.095″ | 1.552 lbs. |
| 186 | 1.625″ | 1.495″ | 0.065″ | 1.083 lbs. |
| 187 | 1.625″ | 1.527″ | 0.049″ | 0.825 lbs. |
| 188 | 1.750″ en diamètre extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids |
| 189 | 1.750″ | 0.750″ | 0.500″ | 6.675 lbs. |
| 190 | 1.750″ | 1.000″ | 0.375″ | 5.507 lbs. |
| 191 | 1.750″ | 1.124″ | 0.313″ | 4.804 lbs. |
| 192 | 1.750″ | 1.250″ | 0.250″ | 4.005 lbs. |
| 193 | 1.750″ | 1.312″ | 0.219″ | 3.581 lbs. |
| 194 | 1.750″ | 1.374″ | 0.188″ | 3.136 lbs. |
| 195 | 1.750″ | 1.438″ | 0.156″ | 2.656 lbs. |
| 196 | 1.750″ | 1.482″ | 0.134″ | 2.313 lbs. |
| 197 | 1.750″ | 1.510″ | 0.120″ | 2.089 lbs. |
| 198 | 1.750″ | 1.532″ | 0.109″ | 1.910 lbs. |
| 199 | 1.750″ | 1.560″ | 0.095″ | 1.679 lbs. |
| 200 | 1.750″ | 1.584″ | ||
| Diamètre Extérieur | Diamètre Intérieur | Epaisseur du Mur | Poids: Lb/Pi lin |
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUBES RONDS HYDRAULIQUES – DOM, CDS, HFS
Normes (ASTM): A179, J524B, SAE J525B
Grandeurs disponibles: 20′ ou couper sur mesure
UTILISATION:
Le tube d’acier hydraulique est populaire pour les applications hydrauliques tels que dans le transport d’huile et d’eau et pour les applications pneumatiques. Le laminé à froid est plus cher que le laminé à chaud, mais celui-ci pourrait s’avérer plus économique au niveau de temps, d’argent et de problèmes à long terme.
Pour les tailles disponibles des tubes ronds hydrauliques, appeler un de nos représentants des ventes.
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUYAUX NOIRS ET GALVANISÉS: CÉDULE 40 – SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
Grandeurs disponibles: 21′ ou couper sur mesure
– Le tuyau A106 est toujours produit sans joint et peut être plié, enroulé et bridé. Dans les dimensions de 2″ et moins il est généralement produit comme un produit « étiré à froid ». Les formats 2″ et plus sont généralement produits selon la méthode « étirée à chaud ».
– Le tuyau A53 est un alliage d’acier au carborne et convient pour le soudage et les opérations de formage impliquant bobinage, pliage et bordage.
UTILISATION:
– Le A106 est utilisé principalement en plomberie générale pour les échangeurs d’air, condensateur, chaudiere etc.
– Le A53 est destinée aux applications mécaniques et de pression et est également acceptable pour les usages ordinaires de la vapeur, de l’eau, du gaz et des conduites d’air.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
|---|---|---|---|---|---|---|
| 1 | Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
| 2 | 1/8″ | 3.180 | 0.405 | 0.269 | 0.068 | 0.24 |
| 3 | 1/4″ | 6.350 | 0.540 | 0.364 | 0.088 | 0.42 |
| 4 | 3/8″ | 9.530 | 0.675 | 0.493 | 0.091 | 0.56 |
| 5 | 1/2″ | 12.700 | 0.840 | 0.622 | 0.109 | 0.85 |
| 6 | 3/4″ | 19.000 | 1.050 | 0.824 | 0.113 | 1.13 |
| 7 | 1″ | 25.400 | 1.315 | 1.049 | 0.133 | 1.67 |
| 8 | 1 1/4″ | 31.800 | 1.660 | 1.380 | 0.140 | 2.27 |
| 9 | 1 1/2″ | 38.100 | 1.900 | 1.610 | 0.145 | 2.71 |
| 10 | 2″ | 50.800 | 2.375 | 2.067 | 0.154 | 3.65 |
| 11 | 2 1/2″ | 63.500 | 2.875 | 2.469 | 0.203 | 5.79 |
| 12 | 3″ | 76.200 | 3.500 | 3.068 | 0.216 | 7.57 |
| 13 | 3 1/2″ | 88.900 | 4.000 | 3.548 | 0.226 | 9.10 |
| 14 | 4″ | 101.600 | 4.500 | 4.026 | 0.237 | 10.79 |
| 15 | 4 1/2″ | 114.300 | 5.000 | 4.506 | .0247 | 12.53 |
| 16 | 5″ | 127.000 | 5.563 | 5.047 | 0.258 | 14.61 |
| 17 | 6″ | 152.400 | 6.625 | 6.065 | 0.280 | 18.97 |
| 18 | 7″ | 177.800 | 7.625 | 7.023 | 0.301 | 23.54 |
| 19 | 8″ | 203.200 | 8.625 | 8.071 | 0.277 | 24.69 |
| 20 | 8″ | 203.200 | 8.625 | 7.981 | 0.322 | 28.55 |
| 21 | 10″ | 254.000 | 10.750 | 10.192 | 0.279 | 31.20 |
| 22 | 10″ | 254.000 | 10.750 | 10.136 | 0.307 | 34.24 |
| 23 | 10″ | 254.000 | 10.750 | 10.020 | 0.365 | 40.48 |
| 24 | 12″ | 304.800 | 12.750 | 12.090 | 0.330 | 43.77 |
| 25 | 12″ | 304.800 | 12.750 | 12.000 | 0.375 | 49.56 |
| 26 | 14″ | 355.600 | 14.000 | 13.250 | 0.375 | 54.57 |
| 27 | 16″ | 406.400 | 16.000 | 15.250 | 0.375 | 62.58 |
| Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUYAUX NOIRS ET GALVANISÉS: CÉDULE 80 – SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
Grandeurs disponibles: 21′ ou couper sur mesure
– Le tuyau A106 est toujours produit sans joint et peut être plié, enroulé et bridé. Dans les dimensions de 2″ et moins il est généralement produit comme un produit « étiré à froid ». Les formats 2″ et plus sont généralement produits selon la méthode « étirée à chaud ».
– Le tuyau A53 est un alliage d’acier au carborne et convient pour le soudage et les opérations de formage impliquant bobinage, pliage et bordage.
UTILISATION:
– Le A106 est utilisé principalement en plomberie générale pour les échangeurs d’air, condensateur, chaudiere etc.
– Le A53 est destinée aux applications mécaniques et de pression et est également acceptable pour les usages ordinaires de la vapeur, de l’eau, du gaz et des conduites d’air.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
|---|---|---|---|---|---|---|
| 1 | 1/8″ | 3.180 | 0.405 | 0.215 | 0.095 | 0.310 |
| 2 | 1/4″ | 6.350 | 0.540 | 0.302 | 0.119 | 0.530 |
| 3 | 3/8″ | 9.530 | 0.675 | 0.423 | 0.126 | 0.730 |
| 4 | 1/2″ | 12.700 | 0.840 | 0.546 | 0.147 | 1.080 |
| 5 | 3/4″ | 19.000 | 1.050 | 0.724 | 0.154 | 1.470 |
| 6 | 1″ | 25.400 | 1.315 | 0.957 | 0.179 | 2.170 |
| 7 | 1 1/4″ | 31.800 | 1.660 | 1.278 | 0.191 | 2.990 |
| 8 | 1 1/2″ | 38.100 | 1.900 | 1.500 | 0.200 | 3.630 |
| 9 | 2″ | 50.800 | 2.375 | 1.939 | 0.218 | 5.020 |
| 10 | 2 1/2″ | 63.500 | 2.875 | 2.323 | 0.276 | 7.660 |
| 11 | 3″ | 76.200 | 3.500 | 2.900 | 0.300 | 10.250 |
| 12 | 3 1/2″ | 88.900 | 4.000 | 3.364 | 0.318 | 12.500 |
| 13 | 4″ | 101.600 | 4.500 | 3.826 | 0.337 | 14.980 |
| 14 | 4 1/2″ | 114.300 | 5.000 | 4.290 | 0.335 | 17.610 |
| 15 | 5″ | 127.000 | 5.563 | 4.813 | 0.375 | 20.770 |
| 16 | 6″ | 152.400 | 6.625 | 5.761 | 0.432 | 28.570 |
| 17 | 7″ | 177.800 | 7.625 | 6.625 | 0.500 | 38.040 |
| 18 | 8″ | 203.200 | 8.625 | 7.625 | 0.500 | 43.380 |
| 19 | 10″ (EH) | 254.000 | 10.750 | 9.750 | 0.500 | 54.730 |
| 20 | 12″ (EH) | 304.800 | 12.750 | 11.750 | 0.500 | 65.410 |
| 21 | 14″ (EH) | 355.600 | 14.000 | 13.000 | 0.500 | 72.090 |
| 22 | 16″ (EH) | 406.400 | 16.000 | 15.000 | 0.500 | 82.770 |
| Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
Consultez les Spécifications Techniques et Grandeurs Disponibles
TUYAUX NOIRS ET GALVANISÉS: CÉDULE XXS (DOUBLE EXTRA FORT) – SEAMLESS (SMLS) WELDED (ERW)
Normes (ASTM): A106, A53
Grandeurs disponibles: 21′ ou couper sur mesure
– Le tuyau A106 est toujours produit sans joint et peut être plié, enroulé et bridé. Dans les dimensions de 2″ et moins il est généralement produit comme un produit « étiré à froid ». Les formats 2″ et plus sont généralement produits selon la méthode « étirée à chaud ».
– Le tuyau A53 est un alliage d’acier au carborne et convient pour le soudage et les opérations de formage impliquant bobinage, pliage et bordage.
UTILISATION:
– Le A106 est utilisé principalement en plomberie générale pour les échangeurs d’air, condensateur, chaudiere etc.
– Le A53 est destinée aux applications mécaniques et de pression et est également acceptable pour les usages ordinaires de la vapeur, de l’eau, du gaz et des conduites d’air.
| wdt_ID | Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
|---|---|---|---|---|---|---|
| 1 | 1/2″ | 12.700 | 0.840 | 0.252 | 0.294 | 1.710 |
| 2 | 3/4″ | 19.000 | 1.050 | 0.434 | 0.308 | 2.440 |
| 3 | 1″ | 25.400 | 1.315 | 0.599 | 0.358 | 3.650 |
| 4 | 1 1/4″ | 31.800 | 1.660 | 0.896 | 0.382 | 5.210 |
| 5 | 1 1/2″ | 38.100 | 1.900 | 1.100 | 0.400 | 6.400 |
| 6 | 2″ | 50.800 | 2.375 | 1.503 | 0.436 | 9.020 |
| 7 | 2 1/2″ | 63.500 | 2.875 | 1.771 | 0.552 | 13.690 |
| 8 | 3″ | 76.200 | 3.500 | 2.300 | 0.600 | 18.580 |
| 9 | 3 1/2″ | 88.900 | 4.000 | 2.728 | 0.636 | 22.850 |
| 10 | 4″ | 101.600 | 4.500 | 3.152 | 0.674 | 27.450 |
| 11 | 4 1/2″ | 114.300 | 5.000 | 3.580 | 0.710 | 32.530 |
| 12 | 5″ | 127.000 | 5.563 | 4.063 | 0.750 | 38.550 |
| 13 | 6″ | 152.400 | 6.625 | 4.897 | 0.864 | 53.160 |
| 14 | 7″ | 177.800 | 7.625 | 5.875 | 0.875 | 63.070 |
| 15 | 8″ | 203.200 | 8.625 | 6.875 | 0.875 | 72.420 |
| Dimensions en Pouce | Dimensions en MM | Diamètre Exterieur | Diamètre Interieur | Epaisseur | Poids: Lb/Pi lin. |
Types de Tubes et Tuyaux en Acier offerts par Acier Lachine
