We supply all the types of structural beams, the H-beams and I-beams, for all your construction projects. Please click any of the below section and explore the wide range of the technical specifications of our structural H-Beams and I-Beams inventory. In case you will not find the desired product or dimension of the existing one, please contact our representatives and they are going to find the products in the necessary dimensions for you.
Structural beams, (H-beams)
| wdt_ID | Size in Inches x Lbs./Lin.Ft. | Size in MM x KG/M | (A) Height | (B) Flange Width | (B) Flange Thickness | (C) Web Thickness | Mod |
|---|---|---|---|---|---|---|---|
| 1 | 4″ | 100mm | |||||
| 2 | 4″ x 13 | 100mm x 9 | (A) 4.16″ | (B) 4.06″ | (B) 0.345″ | (C) 0.280″ | 5.5 |
| 3 | 5″ | 130mm | |||||
| 4 | 5″ x 16 | 130mm x 24 | (A) 5.01″ | (B) 5.00″ | (B) 0.360″ | (C) 0.240″ | 8.6 |
| 5 | 5″ x 19 | 130mm x 28 | (A) 5.15″ | (B) 5.03″ | (B) 0.430″ | (C) 0.270″ | 10.2 |
| 6 | 6″ | 150mm | |||||
| 7 | 6″ x 9 | 150mm x 14 | (A) 5.90″ | (B) 3.94″ | (B) 0.215″ | (C) 0.170″ | 5.6 |
| 8 | 6″ x 12 | 150mm x 18 | (A) 6.03″ | (B) 4.00″ | (B) 0.280″ | (C) 0.230″ | 7.3 |
| 9 | 6″ x 16 | 150mm x 24 | (A) 6.28″ | (B) 4.03″ | (B) 0.405″ | (C) 0.260″ | 10.2 |
| 10 | 6″ x 15 | 150mm x 22 | (A) 5.99″ | (B) 5.99″ | (B) 0.260″ | (C) 0.230″ | 9.7 |
| 11 | 6″ x 20 | 150mm x 30 | (A) 6.20″ | (B) 6.02″ | (B) 0.365″ | (C) 0.260″ | 13.4 |
| 12 | 6″ x 25 | 150mm x 37 | (A) 6.38″ | (B) 6.08″ | (B) 0.455″ | (C) 0.320″ | 16.7 |
| 13 | 8″ | 200mm | |||||
| 14 | 8″ x 10 | 200mm x 15 | (A) 7.89″ | (B) 3.94″ | (B) 0.205″ | (C) 0.170″ | 7.8 |
| 15 | 8″ x 13 | 200mm x 19 | (A) 7.99″ | (B) 4.00″ | (B) 0.255″ | (C) 0.230″ | 9.9 |
| 16 | 8″ x 15 | 200mm x 22 | (A) 8.11″ | (B) 4.02″ | (B) 0.315″ | (C) 0.245″ | 11.8 |
| 17 | 8″ x 14 | 200mm x 21 | (A) 7.98″ | (B) 5.21″ | (B) 0.250″ | (C) 0.195″ | — |
| 18 | 8″ x 18 | 200mm x 27 | (A) 8.14″ | (B) 5.25″ | (B) 0.330″ | (C) 0.230″ | 15.2 |
| 19 | 8″ x 21 | 200mm x 31 | (A) 8.28″ | (B) 5.27″ | (B) 0.400″ | (C) 0.250″ | 18.2 |
| 20 | 8″ x 24 | 200mm x 36 | (A) 7.93″ | (B) 6.50″ | (B) 0.400″ | (C) 0.245″ | 20.9 |
| 21 | 8″ x 28 | 200mm x 42 | (A) 8.06″ | (B) 6.54″ | (B) 0.465″ | (C) 0.285″ | 24.3 |
| 22 | 8″ x 31 | 200mm x 46 | (A) 8.00″ | (B) 8.00″ | (B) 0.435″ | (C) 0.285″ | 27.5 |
| 23 | 8″ x 35 | 200mm x 52 | (A) 8.12″ | (B) 8.02″ | (B) 0.495″ | (C) 0.310″ | 31.2 |
| 24 | 8″ x 40 | 200mm x 59 | (A) 8.25″ | (B) 8.07″ | (B) 0.560″ | (C) 0.360″ | 35.5 |
| 25 | 8″ x 48 | 200mm x 71 | (A) 8.50″ | (B) 8.11″ | (B) 0.685″ | (C) 0.400″ | 43.3 |
| 26 | 8″ x 58 | 200mm x 86 | (A) 8.75″ | (B) 8.22″ | (B) 0.810″ | (C) 0.510″ | 52.0 |
| 27 | 8″ x 67 | 200mm x 100 | (A) 9.00″ | (B) 8.28″ | (B) 0.935″ | (C) 0.570″ | 60.4 |
| 28 | 10″ | 250mm | |||||
| 29 | 10″ x 12 | 250mm x 18 | (A) 9.87″ | (B) 3.96″ | (B) 0.210″ | (C) 0.190″ | 10.9 |
| 30 | 10″ x 15 | 250mm x 22 | (A) 9.99″ | (B) 4.00″ | (B) 0.270″ | (C) 0.230″ | 13.8 |
| 31 | 10″ x 17 | 250mm x 25 | (A) 10.11″ | (B) 4.01″ | (B) 0.330″ | (C) 0.240″ | 16.2 |
| 32 | 10″ x 19 | 250mm x 28 | (A) 10.24″ | (B) 4.02″ | (B) 0.395″ | (C) 0.250″ | 18.8 |
| 33 | 10″ | 250mm | |||||
| 34 | 10″ x 16 | 250mm x 24 | (A) 9.95″ | (B) 5.71″ | (B) 0.250″ | (C) 0.195″ | — |
| 35 | 10″ x 22 | 250mm x 33 | (A) 10.17″ | (B) 5.75″ | (B) 0.360″ | (C) 0.240″ | 23.2 |
| 36 | 10″ x 26 | 250mm x 39 | (A) 10.33″ | (B) 5.77″ | (B) 0.440″ | (C) 0.260″ | 27.9 |
| 37 | 10″ x 30 | 250mm x 45 | (A) 10.47″ | (B) 5.81″ | (B) 0.510″ | (C) 0.300″ | 32.4 |
| 38 | 10″ | 250mm | |||||
| 39 | 10″ x 33 | 250mm x 49 | (A) 9.73″ | (B) 7.96″ | (B) 0.435″ | (C) 0.290″ | 35.0 |
| 40 | 10″ x 39 | 250mm x 58 | (A) 9.92″ | (B) 7.98″ | (B) 0.530″ | (C) 0.315″ | 42.1 |
| 41 | 10″ x 45 | 250mm x 67 | (A) 10.10″ | (B) 8.02″ | (B) 0.620″ | (C) 0.350″ | 49.1 |
| 42 | 10″ x 49 | 250mm x 73 | (A) 9.98″ | (B) 10.00″ | (B) 0.560″ | (C) 0.340″ | 54.6 |
| 43 | 10″ x 54 | 250mm x 80 | (A) 10.09″ | (B) 10.03″ | (B) 0.615″ | (C) 0.370″ | 60.0 |
| 44 | 10″ x 60 | 250mm x 89 | (A) 10.22″ | (B) 10.08″ | (B) 0.680″ | (C) 0.420″ | 66.7 |
| 45 | 10″ | 250mm | |||||
| 46 | 10″ x 68 | 250mm x 101 | (A) 10.40″ | (B) 10.13″ | (B) 0.770″ | (C) 0.470″ | 75.7 |
| 47 | 10″ x 77 | 250mm x 115 | (A) 10.60″ | (B) 10.19″ | (B) 0.870″ | (C) 0.530″ | 85.9 |
| 48 | 10″ x 88 | 250mm x 131 | (A) 10.84″ | (B) 10.26″ | (B) 0.990″ | (C) 0.605″ | 98.5 |
| 49 | 10″ x 100 | 250mm x 149 | (A) 11.10″ | (B) 10.34″ | (B) 1.120″ | (C) 0.680″ | 112.0 |
| 50 | 10″ x 112 | 250mm x 167 | (A) 11.36″ | (B) 10.42″ | (B) 1.250″ | (C) 0.755″ | 126.0 |
| 51 | 12″ | 310mm | |||||
| 52 | 12″ x 14 | 310mm x 21 | (A) 11.91″ | (B) 3.97″ | (B) 0.225″ | (C) 0.200″ | 14.9 |
| 53 | 12″ x 16 | 310mm x 24 | (A) 11.99″ | (B) 3.99″ | (B) 0.265″ | (C) 0.220″ | 17.1 |
| 54 | 12″ x 19 | 310mm x 28 | (A) 12.16″ | (B) 4.00″ | (B) 0.350″ | (C) 0.235″ | 21.3 |
| 55 | 12″ x 22 | 310mm x 33 | (A) 12.31″ | (B) 4.03″ | (B) 0.425″ | (C) 0.260″ | 25.4 |
| 56 | 12″ x 21 | 310mm x 31 | (A) 12.04″ | (B) 6.45″ | (B) 0.290″ | (C) 0.195″ | — |
| 57 | 12″ x 26 | 310mm x 39 | (A) 12.22″ | (B) 6.49″ | (B) 0.380″ | (C) 0.230″ | 33.4 |
| 58 | 12″ x 30 | 310mm x 45 | (A) 12.34″ | (B) 6.52″ | (B) 0.440″ | (C) 0.260″ | 38.6 |
| 59 | 12″ x 35 | 310mm x 52 | (A) 12.50″ | (B) 6.56″ | (B) 0.520″ | (C) 0.300″ | 45.6 |
| 60 | 12″ | 310mm | |||||
| 61 | 12″ x 40 | 310mm x 60 | (A) 11.94″ | (B) 8.00″ | (B) 0.515″ | (C) 0.295″ | 51.9 |
| 62 | 12″ x 45 | 310mm x 67 | (A) 12.06″ | (B) 8.04″ | (B) 0.575″ | (C) 0.335″ | 58.1 |
| 63 | 12″ x 50 | 310mm x 74 | (A) 12.19″ | (B) 8.08″ | (B) 0.640″ | (C) 0.370″ | 64.70 |
| 64 | 12″ | 310mm | |||||
| 65 | 12″ x 53 | 310mm x 79 | (A) 12.06″ | (B) 10.00″ | (B) 0.575″ | (C) 0.345″ | 70.6 |
| 66 | 12″ x 58 | 310mm x 86 | (A) 12.19″ | (B) 10.01″ | (B) 0.640″ | (C) 0.360″ | 78.0 |
| 67 | 12″ x 65 | 310mm x 97 | (A) 12.12″ | (B) 12.00″ | (B) 0.605″ | (C) 0.390″ | 87.9 |
| 68 | 12″ x 72 | 310mm x 107 | (A) 12.25″ | (B) 12.04″ | (B) 0.670″ | (C) 0.430″ | 97.4 |
| 69 | 12″ x 79 | 310mm x 118 | (A) 12.38″ | (B) 12.08″ | (B) 0.735″ | (C) 0.470″ | 107.0 |
| 70 | 12″ x 87 | 310mm x 129 | (A) 12.53″ | (B) 12.12″ | (B) 0.810″ | (C) 0.515″ | 118.0 |
| 71 | 12″ x 96 | 310mm x 143 | (A) 12.71″ | (B) 12.16″ | (B) 0.900″ | (C) 0.550″ | 131.0 |
| 72 | 12″ x 106 | 310mm x 158 | (A) 12.89″ | (B) 12.22″ | (B) 0.990″ | (C) 0.610″ | 145.0 |
| 73 | 12″ x 120 | 310mm x 179 | (A) 13.12″ | (B) 12.32″ | (B) 1.100″ | (C) 0.710″ | 163.0 |
| 74 | 12″ x 136 | 310mm x 202 | (A) 13.41″ | (B) 12.40″ | (B) 1.250″ | (C) 0.790″ | 186.0 |
| 75 | 12″ x 152 | 310mm x 226 | (A) 13.71″ | (B) 12.48″ | (B) 1.400″ | (C) 0.870″ | 209.0 |
| 76 | 12″ x 170 | 310mm x 253 | (A) 14.03″ | (B) 12.57″ | (B) 1.560″ | (C) 0.960″ | 235.0 |
| 77 | 12″ x 190 | 310mm x 283 | (A) 14.38″ | (B) 12.67″ | (B) 1.740″ | (C) 1.030″ | 263.0 |
| 78 | 14″ | 360mm | |||||
| 79 | 14″ x 22 | 360mm x 33 | (A) 13.74″ | (B) 5.00″ | (B) 0.335″ | (C) 0.230″ | 29.0 |
| 80 | 14″ x 26 | 360mm x 39 | (A) 13.91″ | (B) 5.02″ | (B) 0.420″ | (C) 0.255″ | 35.3 |
| 81 | 14″ x 30 | 360mm x 45 | (A) 13.84″ | (B) 6.73″ | (B) 0.385″ | (C) 0.270″ | 42.0 |
| 82 | 14″ x 34 | 360mm x 51 | (A) 13.98″ | (B) 6.74″ | (B) 0.455″ | (C) 0.285″ | 48.6 |
| 83 | 14″ x 38 | 360mm x 57 | (A) 14.10″ | (B) 6.77″ | (B) 0.515″ | (C) 0.310″ | 54.6 |
| 84 | 14″ x 43 | 360mm x 64 | (A) 13.66″ | (B) 8.00″ | (B) 0.530″ | (C) 0.305″ | 62.7 |
| 85 | 14″ x 48 | 360mm x 72 | (A) 13.79″ | (B) 8.03″ | (B) 0.595″ | (C) 0.340″ | 70.3 |
| 86 | 14″ x 53 | 360mm x 79 | (A) 13.92″ | (B) 8.06″ | (B) 0.660″ | (C) 0.370″ | 77.8 |
| 87 | 14″ x 61 | 360mm x 91 | (A) 13.89″ | (B) 10.00″ | (B) 0.645″ | (C) 0.375″ | 92.2 |
| 88 | 14″ x 68 | 360mm x 101 | (A) 14.04″ | (B) 10.04″ | (B) 0.720″ | (C) 0.415″ | 103.0 |
| 89 | 14″ x 74 | 360mm x 110 | (A) 14.17″ | (B) 10.07″ | (B) 0.785″ | (C) 0.450″ | 112.0 |
| 90 | 14″ x 82 | 360mm x 122 | (A) 14.31″ | (B) 10.13″ | (B) 0.855″ | (C) 0.510″ | 123.0 |
| 91 | 14″ x 90 | 360mm x 134 | (A) 14.02″ | (B) 14.52″ | (B) 0.710″ | (C) 0.440″ | 143.0 |
| 92 | 14″ x 99 | 360mm x 147 | (A) 14.16″ | (B) 14.56″ | (B) 0.780″ | (C) 0.485″ | 157.0 |
| 93 | 14″ x 109 | 360mm x 162 | (A) 14.32″ | (B) 14.60″ | (B) 0.860″ | (C) 0.525″ | 173.0 |
| 94 | 14″ x 120 | 360mm x 179 | (A) 14.48″ | (B) 14.67″ | (B) 0.940″ | (C) 0.590″ | 190.0 |
| 95 | 14″ x 132 | 360mm x 196 | (A) 14.66″ | (B) 14.72″ | (B) 1.030″ | (C) 0.645″ | 109.0 |
| 96 | 16″ | 410mm | |||||
| 97 | 16″ x 26 | 410mm x 39 | (A) 15.69″ | (B) 5.50″ | (B) 0.345″ | (C) 0.250″ | 38.4 |
| 98 | 16″ x 31 | 410mm x 46 | (A) 15.88″ | (B) 5.52″ | (B) 0.440″ | (C) 0.275″ | 47.5 |
| 99 | 16″ x 36 | 410mm x54 | (A) 15.86″ | (B) 6.98″ | (B) 0.430″ | (C) 0.295″ | 56.5 |
| 100 | 16″ x 40 | 410mm x 60 | (A) 16.01″ | (B) 7.00″ | (B) 0.505″ | (C) 0.305″ | 64.7 |
| 101 | 16″ x 45 | 410mm x 67 | (A) 16.13″ | (B) 7.04″ | (B) 0.565″ | (C) 0.345″ | 72.7 |
| 102 | 16″ x 50 | 410mm x 74 | (A) 16.26″ | (B) 7.07″ | (B) 0.630″ | (C) 0.380″ | 81.0 |
| 103 | 16″ x 57 | 410mm x 85 | (A) 16.43″ | (B) 7.12″ | (B) 0.715″ | (C) 0.430″ | 92.2 |
| 104 | 16″ x 67 | 410mm x 100 | (A) 16.33″ | (B) 10.24″ | (B) 0.665″ | (C) 0.395″ | 117.0 |
| 105 | 16″ x 77 | 410mm x 114 | (A) 16.52″ | (B) 10.30″ | (B) 0.760 | (C) 0.455″ | 134.0 |
| 106 | 16″ x 89 | 410mm x 132 | (A) 16.75″ | (B) 10.36″ | (B) 0.875″ | (C) 0.525″ | 155.0 |
| 107 | 16″ x 100 | 410mm x 149 | (A) 16.97″ | (B) 10.42″ | (B) 0.985″ | (C) 0.585″ | 175.0 |
| 108 | 18″ | 460mm | |||||
| 109 | 18″ x 35 | 460mm x 52 | (A) 17.70″ | (B) 6.00″ | (B) 0.425″ | (C) 0.300″ | 57.6 |
| 110 | 18″ x 40 | 460mm x 60 | (A) 17.90″ | (B) 6.02″ | (B) 0.525″ | (C) 0.515″ | 68.4 |
| 111 | 18″ x 46 | 460mm x 68 | (A) 18.06″ | (B) 6.06″ | (B) 0.605″ | (C) 0.360″ | 78.8 |
| 112 | 18″ x 41 | 460mm x 61 | (A) 17.70″ | (B) 7.45″ | (B) 0.425″ | (C) 0.320″ | 70.3 |
| 113 | 18″ x 45 | 460mm x 67 | (A) 17.86″ | (B) 7.48″ | (B) 0.499″ | (C) 0.335″ | 80.5 |
| 114 | 18″ x 50 | 460mm x 74 | (A) 17.99″ | (B) 7.50″ | (B) 0.570″ | (C) 0.355″ | 88.9 |
| 115 | 18″ x 55 | 460mm x 82 | (A) 18.11″ | (B) 7.53″ | (B) 0.630″ | (C) 0.390″ | 98.3 |
| 116 | 18″ x 60 | 460mm x 89 | (A) 18.24″ | (B) 7.56″ | (B) 0.695″ | (C) 0.415″ | 108.0 |
| 117 | 18″ x 65 | 460mm x 97 | (A) 18.35″ | (B) 7.59″ | (B) 0.750″ | (C) 0.450″ | 117.0 |
| 118 | 18″ x 71 | 460mm x 106 | (A) 18.47″ | (B) 7.64″ | (B) 0.810″ | (C) 0.495″ | 127.0 |
| 119 | 18″ x 76 | 460mm x 113 | (A) 18.21″ | (B) 11.04″ | (B) 0.680″ | (C) 0.425″ | 146.0 |
| 120 | 18″ x 86 | 460mm x 128 | (A) 18.39″ | (B) 11.09″ | (B) 0.770″ | (C) 0.480″ | 166.0 |
| 121 | 18″ x 97 | 460mm x 144 | (A) 18.59″ | (B) 11.14″ | (B) 0.870″ | (C) 0.535″ | 188.0 |
| 122 | 18″ x 106 | 460mm x 158 | (A) 18.73″ | (B) 11.20″ | (B) 0.940″ | (C) 0.590″ | 204.0 |
| 123 | 18″ x 119 | 460mm x 177 | (A) 18.97″ | (B) 11.26″ | (B) 1.060″ | (C) 0.655″ | 231.0 |
| 124 | 21″ | 530mm | |||||
| 125 | 21″ x 68 | 530mm x 101 | (A) 21.13″ | (B) 8.27″ | (B) 0.685″ | (C) 0.430″ | 140.0 |
| 126 | 21″ x 73 | 530mm x 109 | (A) 21.24″ | (B) 8.30″ | (B) 0.740″ | (C) 0.455″ | 151.0 |
| 127 | 21″ x 83 | 530mm x 123 | (A) 21.43″ | (B) 8.36″ | (B) 0.835″ | (C) 0.515″ | 171.0 |
| 128 | 21″ x 93 | 530mm x 138 | (A) 21.62″ | (B) 8.42″ | (B) 0.930″ | (C) 0.580″ | 192.0 |
| 129 | 21″ x 101 | 530mm x 150 | (A) 21.36″ | (B) 12.29″ | (B) 0.800″ | (C) 0.500″ | 227.0 |
| 130 | 21″ x 111 | 530mm x 165 | (A) 21.51″ | (B) 12.34″ | (B) 0.875″ | (C) 0.550″ | 249.0 |
| 131 | 21″ x 122 | 530mm x 182 | (A) 21.68″ | (B) 12.39″ | (B) 0.960″ | (C) 0.600″ | 273.0 |
| 132 | 21″ x 132 | 530mm x 196 | (A) 21.83″ | (B) 12.44″ | (B) 1.040″ | (C) 0.650″ | 295.0 |
| 133 | 21″ x 147 | 530mm x 219 | (A) 22.06″ | (B) 12.51″ | (B) 1.150″ | (C) 0.720″ | 329.0 |
| 134 | 24″ | 610mm | |||||
| 135 | 24″ x 55 | 610mm x 82 | (A) 23.57″ | (B) 7.00″ | (B) 0.505″ | (C) 0.395″ | 114.0 |
| 136 | 24″ x 62 | 610mm x 92 | (A) 23.74″ | (B) 7.04″ | (B) 0.590″ | (C) 0.430″ | 131.0 |
| 137 | 24″ x 56 | 610mm x 84 | (A) 23.48″ | (B) 8.90″ | (B) 0.460″ | (C) 0.355″ | — |
| 138 | 24″ x 61 | 610mm x 91 | (A) 23.56″ | (B) 8.93″ | (B) 0.500″ | (C) 0.380″ | — |
| 139 | 24″ x 68 | 610mm x 101 | (A) 23.73″ | (B) 8.96″ | (B) 0.585″ | (C) 0.415″ | 154.0 |
| 140 | 24″ x 76 | 610mm x 113 | (A) 23.93″ | (B) 8.99″ | (B) 0.680″ | (C) 0.440″ | 176.0 |
| 141 | 24″ x 84 | 610mm x 125 | (A) 24.10″ | (B) 9.02 | (B) 0.770″ | (C) 0.470″ | 196.0 |
| 142 | 24″ x 94 | 610mm x 140 | (A) 24.31″ | (B) 9.06″ | (B) 0.875″ | (C) 0.515″ | 222.0 |
| 143 | 24″ x 104 | 610mm x 155 | (A) 24.06″ | (B) 12.75″ | (B) 0.750″ | (C) 0.500″ | 258.0 |
| 144 | 24″ x 117 | 610mm x 174 | (A) 24.26″ | (B) 12.80″ | (B) 0.850″ | (C) 0.550″ | 291.0 |
| 145 | 24″ x 131 | 610mm x 195 | (A) 24.48″ | (B) 12.86″ | (B) 0.960″ | (C) 0.605″ | 329.0 |
| 146 | 24″ x 146 | 610mm x 217 | (A) 24.74″ | (B) 12.90″ | (B) 1.090″ | (C) 0.650″ | 371.0 |
| 147 | 24″ x 162 | 610mm x 241 | (A) 25.00″ | (B) 12.96″ | (B) 1.220″ | (C) 0.705″ | 414.0 |
| 148 | 27″ | 690mm | |||||
| 149 | 27″ x 84 | 690mm x 120 | (A) 26.71″ | (B) 9.96″ | (B) 0.640″ | (C) 0.460″ | 213.0 |
| 150 | 27″ x 94 | 690mm x 140 | (A) 26.92″ | (B) 9.99″ | (B) 0.745″ | (C) 0.490″ | 243.0 |
| 151 | 27″ x 102 | 690mm x 152 | (A) 27.19″ | (B) 10.02″ | (B) 0.830″ | (C) 0.515″ | 267.0 |
| 152 | 27″ x 114 | 690mm x 170 | (A) 27.29″ | (B) 10.07″ | (B) 0.930″ | (C) 0.570″ | 299.0 |
| 153 | 27″ x 146 | 690mm x 217 | (A) 27.38″ | (B) 13.96″ | (B) 0.975″ | (C) 0.605″ | 411.0 |
| 154 | 27″ x 161 | 690mm x 240 | (A) 27.59″ | (B) 14.02″ | (B) 1.080″ | (C) 0.660″ | 455.0 |
| 155 | 27″ x 178 | 690mm x 265 | (A) 27.81″ | (B) 14.08″ | (B) 1.190″ | (C) 0.725″ | 502.0 |
| 156 | 30″ | 760mm | |||||
| 157 | 30″ x 99 | 760mm x 147 | (A) 29.65″ | (B) 10.45″ | (B) 0.670″ | (C) 0.520″ | 269.0 |
| 158 | 30″ x 108 | 760mm x 161 | (A) 29.83″ | (B) 10.48″ | (B) 0.760″ | (C) 0.545″ | 299.0 |
| 159 | 30″ x 116 | 760mm x 173 | (A) 30.01″ | (B) 10.50″ | (B) 0.850″ | (C) 0.565″ | 329.0 |
| 160 | 30″ x 124 | 760mm x 185 | (A) 30.17″ | (B) 10.52″ | (B) 0.930″ | (C) 0.585″ | 355.0 |
| 161 | 30″ x 132 | 760mm x 196 | (A) 30.31″ | (B) 10.54″ | (B) 1.000″ | (C) 0.615″ | 380.0 |
| 162 | 30″ x 173 | 760mm x 257 | (A) 30.44″ | (B) 14.98″ | (B) 1.060″ | (C) 0.655″ | 539.0 |
| 163 | 30″ x 191 | 760mm x 284 | (A) 30.68″ | (B) 15.04″ | (B) 1.180″ | (C) 0.710″ | 598.0 |
| 164 | 30″ x 211 | 760mm x 314 | (A) 30.94″ | (B) 15.10″ | (B) 1.310″ | (C) 0.775″ | 663.0 |
| Size in Inches x Lbs./Lin.Ft. | Size in MM x KG/M | (A) Height | (B) Flange Width | (B) Flange Thickness | (C) Web Thickness | Mod |
Structural beams (I-beams)
| wdt_ID | Size in Inches x Lbs./Lin.Ft. | Size in MM x KG/M | (A) Height | (B) Flange Width | (B) Flange Thickness | (C) Web Thickness | Mod |
|---|---|---|---|---|---|---|---|
| 1 | 3″ | 75mm | |||||
| 2 | 3″ x 5.7 | 75mm x 8 | (A) 3.00″ | (B) 2.33″ | (B) 0.260″ | (C) 0.170″ | 1.68 |
| 3 | 3″ x 7.5 | 75mm x 11 | (A) 3.00″ | (B) 2.51″ | (B) 0.260″ | (C) 0.349″ | 1.95 |
| 4 | 4″ | 100mm | |||||
| 5 | 4″ x 3.20 | 100mm x 4.8 | (A) 4.00″ | (B) 2.25″ | (B) 0.129″ | (C) 0.094″ | — |
| 6 | 4″ x 3.64 | 100mm x 5.5 | (A) 4.00″ | (B) 2.25″ | (B) 0.129″ | (C) 0.125″ | — |
| 7 | 4″ x 7.7 | 100mm x 1 | (A) 4.00″ | (B) 2.66″ | (B) 0.293″ | (C) 0.193″ | 3.04 |
| 8 | 4″ x 9.5 | 100mm x 14.1 | (A) 4.00″ | (B) 2.80″ | (B) 0.293″ | (C) 0.326″ | 3.40 |
| 9 | 5″ | 130mm | |||||
| 10 | 5″ x 10 | 130mm x 15 | (A) 5.00″ | (B) 3.00″ | (B) 0.326″ | (C) 0.214″ | 4.92 |
| 11 | 5″ x 14.75 | 130mm x 22 | (A) 5.00″ | (B) 3.28″ | (B) 0.326″ | (C) 0.494″ | 6.08 |
| 12 | 6″ | 150mm | |||||
| 13 | 6″ x 12.5 | 150mm x 19 | (A) 6.00″ | (B) 3.33″ | (B) 0.359″ | (C) 0.232″ | 7.37 |
| 14 | 6″ x 17.25 | 150mm x 26 | (A) 6.00″ | (B) 3.57″ | (B) 0.359″ | (C) 0.465″ | 8.77 |
| 15 | 7″ | 180mm | |||||
| 16 | 7″ x 15.3 | 180mm x 22.8 | (A) 7.00″ | (B) 3.66″ | (B) 0.392″ | (C) 0.252″ | 10.5 |
| 17 | 7″ x 20.0 | 180mm x 30.0 | (A) 7.00″ | (B) 3.86″ | (B) 0.392″ | (C) 0.450″ | 12.1 |
| 18 | 8″ | 200mm | |||||
| 19 | 8″ x 18.4 | 200mm x 27 | (A) 8.00″ | (B) 4.00″ | (B) 0.425″ | (C) 0.271″ | 14.4 |
| 20 | 8″ x 23.0 | 200mm x 34 | (A) 8.00″ | (B) 4.17″ | (B) 0.425″ | (C) 0.441″ | 16.2 |
| 21 | 10″ | 250mm | |||||
| 22 | 10″ x 25.4 | 250mm x 38 | (A) 10.00″ | (B) 4.66″ | (B) 0.491″ | (C) 0.311″ | 24.8 |
| 23 | 10″ x 35 | 250mm x 52 | (A) 10.00″ | (B) 4.94″ | (B) 0.491″ | (C) 0.594″ | 29.4 |
| 24 | 12″ | 310mm | |||||
| 25 | 12″ x 31.8 | 310mm x 47 | (A) 12.00″ | (B) 5.00″ | (B) 0.544″ | (C) 0.350″ | 36.3 |
| 26 | 12″ x 35.0 | 310mm x 52 | (A) 12.00″ | (B) 5.08″ | (B) 0.544″ | (C) 0.428″ | 38.2 |
| 27 | 12″ x 40.8 | 310mm x 60.7 | (A) 12.00″ | (B) 5.25″ | (B) 0.659″ | (C) 0.462″ | 45.3 |
| 28 | 12″ x 50.0 | 310mm x 74 | (A) 12.00″ | (B) 5.48″ | (B) 0.659″ | (C) 0.687″ | 50.8 |
| 29 | 15″ | 380mm | |||||
| 30 | 15″ x 42.9 | 380mm x 64 | (A) 15.00″ | (B) 5.50″ | (B) 0.622″ | (C) 0.411″ | 59.6 |
| 31 | 15″ x 50.0 | 380mm x 74 | (A) 15.00″ | (B) 5.64″ | (B) 0.622″ | (C) 0.550″ | 64.8 |
| 32 | 18″ | 460mm | |||||
| 33 | 18″ x 54.7 | 460mm x 81.4 | (A) 18.00″ | (B) 6.00″ | (B) 0.691″ | (C) 0.460″ | 89.3 |
| 34 | 18″ x 70.0 | 460mm x 104 | (A) 18.00″ | (B) 6.25″ | (B) 0.691″ | (C) 0.711″ | 103.0 |
| 35 | 20″ | 510mm | |||||
| 36 | 20″ x 66.0 | 510mm x 98.2 | (A) 20.00″ | (B) 6.26″ | (B) 0.795″ | (C) 0.505″ | 119.0 |
| 37 | 20″ x 75.0 | 510mm x 112 | (A) 20.00″ | (B) 6.38″ | (B) 0.795″ | (C) 0.635″ | 128.0 |
| 38 | 20″ x 86.0 | 510mm x 128 | (A) 20.30″ | (B) 7.06″ | (B) 0.920″ | (C) 0.660″ | 155.0 |
| 39 | 20″ x 96.0 | 510mm x 143 | (A) 20.30″ | (B) 7.20″ | (B) 0.920″ | (C) 0.800″ | 165.0 |
| 40 | 24″ | 610mm | |||||
| 41 | 24″ x 80.0 | 610mm x 119 | (A) 24.00″ | (B) 7.00″ | (B) 0.870″ | (C) 0.500″ | 175.0 |
| 42 | 24″ x 90.0 | 610mm x 134 | (A) 24.00″ | (B) 7.12″ | (B) 0.870″ | (C) 0.625″ | 187.0 |
| 43 | 24″ x 100.0 | 610mm x 149 | (A) 24.00″ | (B) 7.24″ | (B) 0.870″ | (C) 0.745″ | 199.0 |
| 44 | 24″ x 106 | 610mm x 158 | (A) 24.50″ | (B) 7.87″ | (B) 1.090″ | (C) 0.620″ | 240.0 |
| 45 | 24″ x 121.0 | 610mm x 180 | (A) 24.50″ | (B) 8.05″ | (B) 1.090″ | (C) 0.800″ | 258.0 |
| Size in Inches x Lbs./Lin.Ft. | Size in MM x KG/M | (A) Height | (B) Flange Width | (B) Flange Thickness | (C) Web Thickness | Mod |

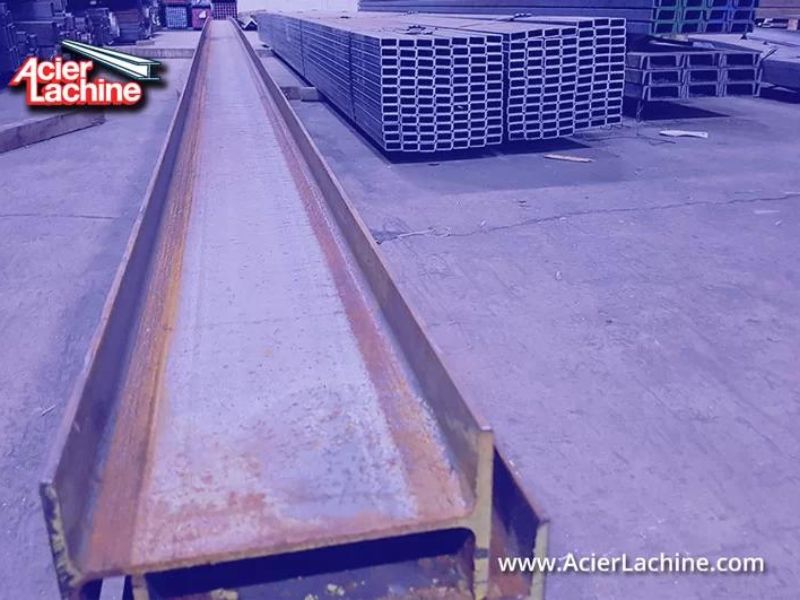

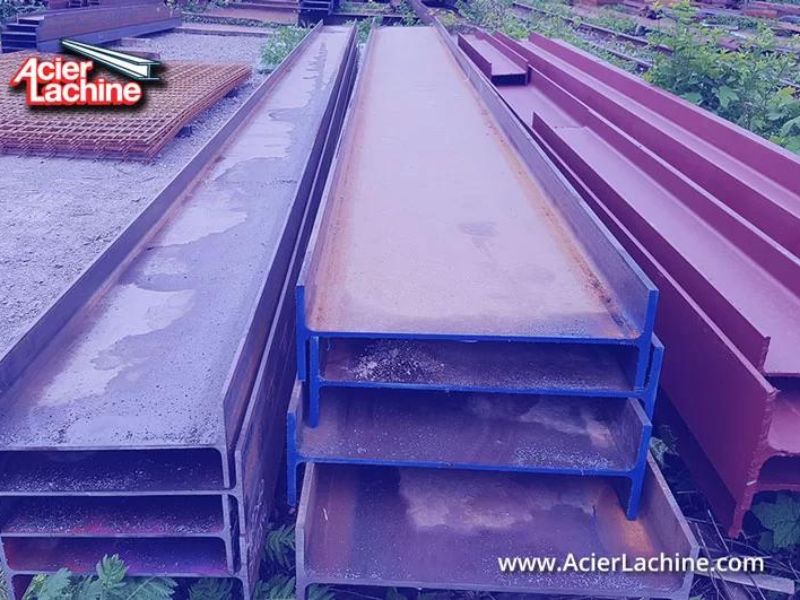

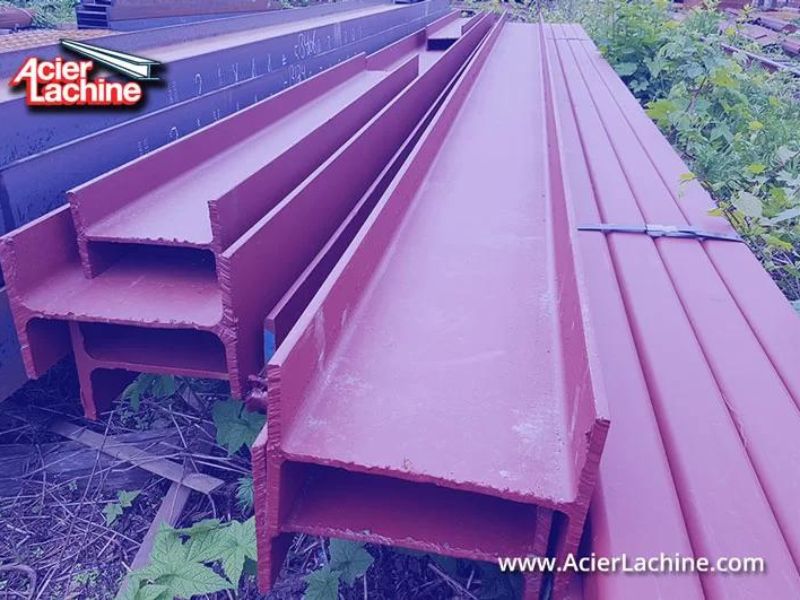

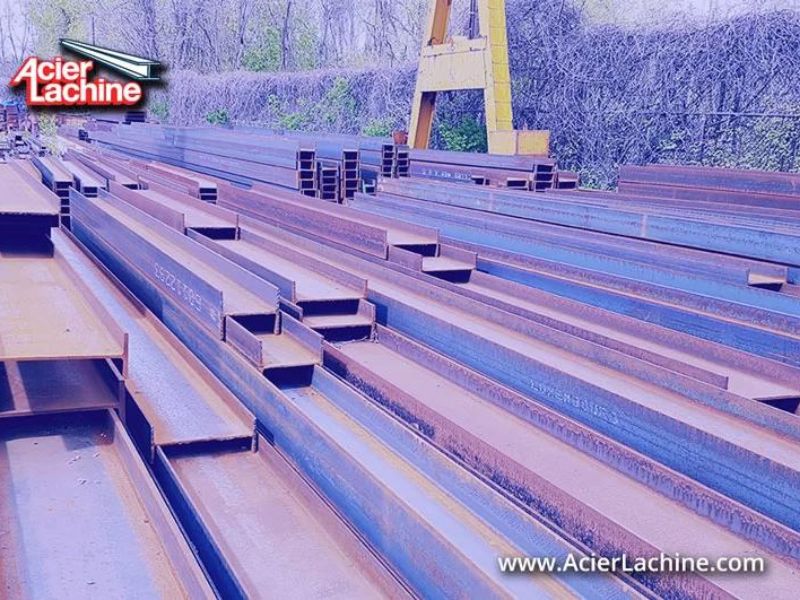

Types of Structural H-Beams and I-Beams offered by Acier Lachine
