Besides our offer of standard structural steel channels, we stock an assortment of bent and stringer channels.

Please click any of the below sections and explore the wide range of the technical specifications of our structural steel channels inventory. In case you will not find the desired product or dimension of the existing one, please contact our representatives and they are going to find the products in the necessary dimensions for you.

Explore our range of STEEL STRUCTURAL CHANNELS

Profiles en U de Structure | Structural Steel Channels | Acier Lachine, Montreal, Quebec | www.acierlachine.com | +1-514-634-2252

STEEL STRUCTURAL CHANNELS

  • Design and Shape:

    • Structural channels, commonly referred to as C channels, have a specific design with tapered flanges.

    • The tapered flanges have a slope, usually around 2/3%, which means the inner and outer surfaces of the flange are not parallel.

    • This design is standardized for use in construction and structural applications.

  • Applications:

    • Commonly used in building construction, bridges, and other civil engineering projects where consistent strength and stability are required.

    • Suitable for frameworks, support structures, and load-bearing applications.

  • Standards:

    • Structural channels are manufactured to meet specific standards, ensuring uniformity and reliability in structural integrity.

    • Typical standards include those defined by organizations like ASTM.

Profiles en U de Structure | Structural Steel Channels | Acier Lachine, Montreal, Quebec | www.acierlachine.com | +1-514-634-2252

STEEL MISCELLANEOUS CHANNELS

  • Design and Shape:

    • Miscellaneous channels, denoted as MC channels, differ from standard C channels mainly in the dimensions of the flanges and web.

    • Miscellaneous channels may have non-tapered flanges, meaning the inner and outer surfaces are parallel, providing a different profile compared to structural channels.

    • The design can vary more significantly, tailored to specific or custom applications.

  • Applications:

    • Used in scenarios where the specific dimensions or design of a structural channel are not necessary or where a custom profile is needed.

    • Suitable for applications that require non-standard sizes or where specific dimensions are more critical than standard load-bearing capabilities.

  • Standards:

    • Manufactured to different standards or specifications, which can be less rigid compared to structural channels.

    • Often used in specialized construction, manufacturing, or custom fabrication projects where standard structural profiles are not sufficient.

Browse all the Technical Specifications & Available Dimensions

Profiles en U de Structure | Structural Steel Channels | Acier Lachine, Montreal, Quebec | www.acierlachine.com | +1-514-634-2252

STEEL STRUCTURAL CHANNELS

  • Construction: Used in building frames, braces, supports for machinery, and heavy equipment.
  • Sound Absorption: Placed between plasterboard walls to reduce sound vibrations.
  • Roof Structures: Serve as rafters, perpendicularly supporting roof decks, providing long-lasting and moisture-resistant alternatives to wood.
  • Vehicle Frames: Main frame rails and structural supports in automobiles, offering rigidity and strength.
  • Trailer Building: Frame rails, tongues, joists for flatbed, box, and recreational trailers.
  • Industrial Buildings: Used with I-beams as girts, studs, braces, and joists for added structural integrity.
  • Solar Panels: Lightweight yet durable supports for solar panel installations.
  • Commercial Use: Railings, stair stringers, bridge trusses, and guard rails in various infrastructures.

Structural Channels

wdt_ID (A) Dimensions in Inches x Lbs./ Lin.Ft. (A) Dimensions in MM x KG/M (B) Flange Height (B) Flange Thickness (C) Web Thickness Mod
1 3″ 75mm
2 (A) 3″ x 3.5 (A) 75mm x 5 (B) 1.375″ (B) 0.149″ (C) 0.130″ –
3 (A) 3″ x 4.1 (A) 75mm x 6 (B) 1.410″ (B) 0.273″ (C) 0.170″ 1.11
4 (A) 3″ x 5 (A) 75mm x 7 (B) 1.500″ (B) 0.273″ (C) 0.258″ 1.23
5 (A) 3″ x 6 (A) 75mm x 9 (B) 1.600″ (B) 0.273″ (C) 0.356″ 1.38
6 4″ 100mm
7 (A) 4″ x 4.5 (A) 100mm x 7 (B) 1.590″ (B) 0.182″ (C) 0.135″ –
8 (A) 4″ x 5.4 (A) 100mm x 8 (B) 1.580″ (B) 0.296″ (C) 0.184″ 1.93
9 (A) 4″ x 6.25 (A) 100mm x 9 (B) 1.647″ (B) 0.296″ (C) 0.247″ 2.10
10 (A) 4″ x 7.25 (A) 100mm x 11 (B) 1.720″ (B) 0.296″ (C) 0.321″ 2.30
11 5″ 130mm
12 (A) 5″ x 6.7 (A) 130mm x 10 (B) 1.750″ (B) 0.320″ (C) 0.190″ 3.00
13 (A) 5″ x 9 (A) 130mm x 13 (B) 1.880″ (B) 0.320″ (C) 0.325″ 3.56
14 (A) 5″ x 11.5 (A) 130mm x 17 (B) 2.030″ (B) 0.320″ (C) 0.472″ 4.10
15 6″ 150mm
16 (A) 6″ x 8.2 (A) 150mm x 12 (B) 1.920″ (B) 0.343″ (C) 0.200″ 4.37
17 (A) 6″ x 10.5 (A) 150mm x 16 (B) 2.030″ (B) 0.343″ (C) 0.314″ 5.07
18 (A) 6″ x 13 (A) 150mm x 19 (B) 2.160″ (B) 0.343″ (C) 0.437″ 5.80
19 7″ 180mm
20 (A) 7″ x 9.8 (A) 180mm x 15 (B) 2.090″ (B) 0.366″ (C) 0.210″ 6.09
21 (A) 7″ x 12.25 (A) 180mm x 18 (B) 2.190″ (B) 0.366″ (C) 0.314″ 6.91
22 (A) 7″ x 14.75 (A) 180mm x 22 (B) 2.300″ (B) 0.366″ (C) 0.419″ 7.77
23 8″ 200mm
24 (A) 8″ x 11.5 (A) 200mm x 17 (B) 2.260″ (B) 0.390″ (C) 0.220″ 8.15
25 (A) 8″ x 13.75 (A) 200mm x 21 (B) 2.340″ (B) 0.390″ (C) 0.303″ 9.03
26 (A) 8″ x 18.75 (A) 200mm x 28 (B) 2.530″ (B) 0.390″ (C) 0.487″ 11.00
27 9″ 230mm
28 (A) 9″ x 13.4 (A) 230mm x 20 (B) 2.430″ (B) 0.413″ (C) 0.233″ 10.60
29 (A) 9″ x 15.0 (A) 230mm x 22 (B) 2.480″ (B) 0.413″ (C) 0.285″ 11.30
30 (A) 9″ x 20.0 (A) 230mm x 30 (B) 2.650″ (B) 0.413″ (C) 0.448″ 13.50
31 10″ 250mm
32 (A) 10″ x 15.3 (A) 250mm x 23 (B) 2.60″ (B) 0.436″ (C) 0.240″ 13.50
33 (A) 10″ x 20.0 (A) 250mm x 30 (B) 2.740″ (B) 0.436″ (C) 0.379″ 15.80
34 (A) 10″ x 25 (A) 250mm x 37 (B) 2.890″ (B) 0.436″ (C) 0.526″ 18.20
35 (A) 10″ x 30.0 (A) 250mm x 45 (B) 3.030″ (B) 0.436″ (C) 0.673″ 20.60
36 12″ 310mm
37 (A) 12″ x 20.7 (A) 310mm x 31 (B) 2.940″ (B) 0.501″ (C) 0.282″ 21.50
38 (A) 12″ x 25.0 (A) 310mm x 37 (B) 3.050″ (B) 0.501″ (C) 0.387″ 24.00
39 (A) 12″ x 30.0 (A) 310mm x 45 (B) 3.170″ (B) 0.501″ (C) 0.510″ 27.00
40 15″ 380mm
41 (A) 15″ x 33.9 (A) 380mm x 50 (B) 3.400″ (B) 0.650″ (C) 0.400″ 42.00
42 (A) 15″ x 40.0 (A) 380mm x 60 (B) 3.520″ (B) 0.650″ (C) 0.520″ 46.50
43 (A) 15″ x 50.0 (A) 380mm x 74 (B) 3.720″ (B) 0.650″ (C) 0.716″ 53.90
44 18″ 460mm
45 (A) 18″ x 42.7 (A) 460mm x 63.5 (B) 3.950″ (B) 0.625″ (C) 0.450″ 61.60
(A) Dimensions in Inches x Lbs./ Lin.Ft. (A) Dimensions in MM x KG/M (B) Flange Height (B) Flange Thickness (C) Web Thickness Mod
Download the List of the Channels

Back-to-Top

Return to all Products

Browse all the Technical Specifications & Available Dimensions

Profiles en U de Structure | Structural Steel Channels | Acier Lachine, Montreal, Quebec | www.acierlachine.com | +1-514-634-2252

STEEL MISCELLANEOUS CHANNELS

  • Interior Finishes: Support for drywall and other interior wall finishes.
  • Window and Door Frames: Provide secure frames more rigid than wood.
  • Beam Reinforcement: Strengthen wood beams in building renovations or new constructions.
  • Transportation Industry: Window tracks, bumpers, reinforcement bars, and trim in vehicles.

Miscellaneous Channels

wdt_ID (A) Dimensions in Inches x Lbs./ Lin.Ft. (A) Dimensions in MM x KG/M (B) Flange Height (B) Flange Thickness (C) Web Thickness Mod
1 3″ 75mm
2 (A) 3″ x 7.1 (A) 75mm x 10.6 (B) 1.94″ (B) 0.351″ (C) 0.312″ 1.82
3 (A) 3″ x 9.0 (A) 75mm x 13.4 (B) 2.12″ (B) 0.351″ (C) 0.497″ 2.10
4 6″ 150mm
5 (A) 6″ x 12 (A) 150mm x 17.9 (B) 2.50″ (B) 0.375″ (C) 0.310″ 6.23
6 (A) 6″ x 15.1 (A) 150mm x 22.8 (B) 2.94″ (B) 0.475″ (C) 0.316″ 8.33
7 (A) 6″ x 15.3 (A) 150mm x 24.3 (B) 3.50″ (B) 0.385″ (C) 0.340″ 8.47
8 (A) 6″ x 16.3 (A) 150mm x 26.8 (B) 3.00″ (B) 0.475″ (C) 0.375″ 8.67
9 (A) 6″ x 18.0 (A) 150mm x 26.8 (B) 3.50″ (B) 0.475″ (C) 0.379″ 9.90
10 7″ 180mm
11 (A) 7″ x 17.6 (A) 180mm x 26.2 (B) 3.00″ (B) 0.475″ (C) 0.375″ 10.70
12 (A) 7″ x 19.1 (A) 180mm x 28.4 (B) 3.45″ (B) 0.500″ (C) 0.350″ 12.3
13 (A) 7″ x 22.7 (A) 180mm x 33.8 (B) 3.60″ (B) 0.500″ (C) 0.503″ 13.6
14 8″ 200mm
15 (A) 8″ x 8.5 (A) 200mm x 13.0 (B) 1.875″ (B) 0.311″ (C) 0.180″ 5.90
16 (A) 8″ x 18.7 (A) 200mm x 27.8 (B) 2.98″ (B) 0.500″ (C) 0.353″ 13.10
17 (A) 8″ x 20.0 (A) 200mm x 29.8 (B) 3.02″ (B) 0.500″ (C) 0.400″ 13.6
18 (A) 8″ x 21.4 (A) 200mm x 31.8 (B) 3.45″ (B) 0.525″ (C) 0.375″ 15.4
19 (A) 8″ x 22.8 (A) 200mm x 33.9 (B) 3.5″ (B) 0.525″ (C) 0.427″ 16.00
20 9″ 230mm
21 (A) 9″ x 23.9 (A) 230mm x 35.6 (B) 3.50″ (B) 0.550″ (C) 0.450″ 19.60
22 (A) 9″ x 25.4 (A) 230mm x 37.8 (B) 3.50″ (B) 0.550″ (C) 0.450″ 19.60
23 10″ 250mm
24 (A) 10″ x 6.5 (A) 250mm x 9.7 (B) 1.13″ (B) 0.202″ (C) 0.152″ 4.42
25 (A) 10″ x 8.4 (A) 250mm x 12.5 (B) 1.50″ (B) 0.280″ (C) 0.170″ 6.40
26 (A) 10″ x 21.9 (A) 250mm x 32.6 (B) 3.45″ (B) 0.500″ (C) 0.325″ 19.70
27 (A) 10″ x 24.9 (A) 250mm x 37.1 (B) 3.40″ (B) 0.575″ (C) 0.377″ 22.00
28 12″ 310mm
29 (A) 12″ x 10.6 (A) 310mm x 15.8 (B) 1.50″ (B) 0.309″ (C) 0.190″ —
(A) Dimensions in Inches x Lbs./ Lin.Ft. (A) Dimensions in MM x KG/M (B) Flange Height (B) Flange Thickness (C) Web Thickness Mod
Download the List of the Channels

Back-to-Top

Return to all Products

Types of Steel Structural Channels offered by Acier Lachine

Our Steel Structural Channels for Sale View 1 Acier Lachine Montreal QC 800x600 2
Our Steel Structural Channels for Sale View 2 Acier Lachine Montreal QC 800x600 2

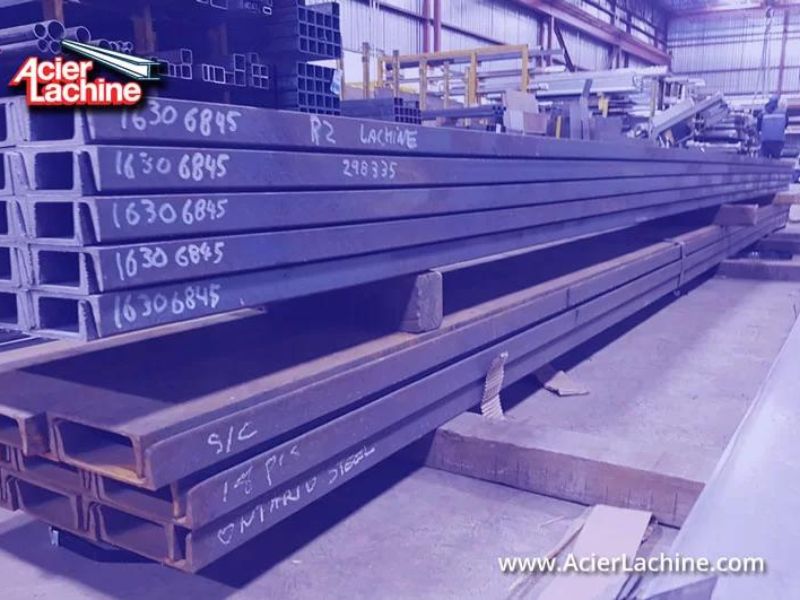

Our Steel Structural Channels for Sale View 3 Acier Lachine Montreal QC 800x600 2
Our Steel Structural Channels for Sale View 4 Acier Lachine Montreal QC 800x600 1 1

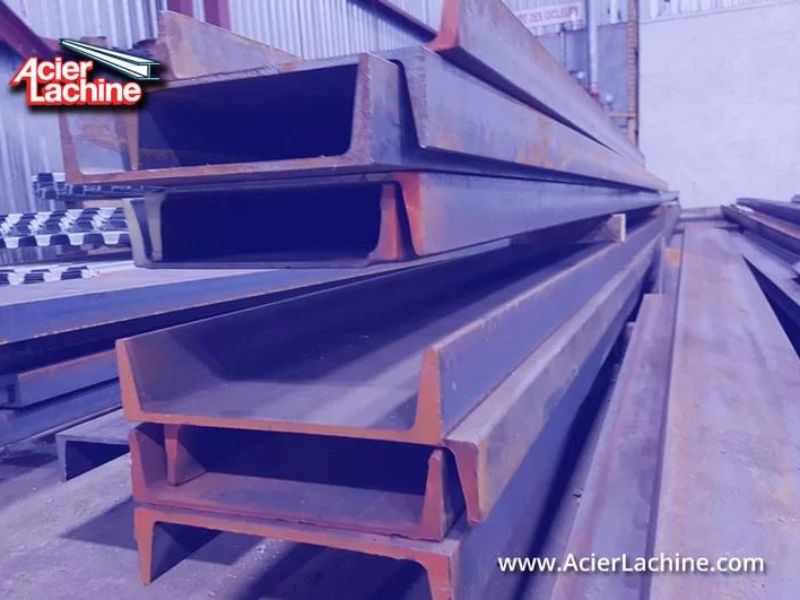

Our Steel Structural Channels for Sale View 5 Acier Lachine Montreal QC 800x600 2

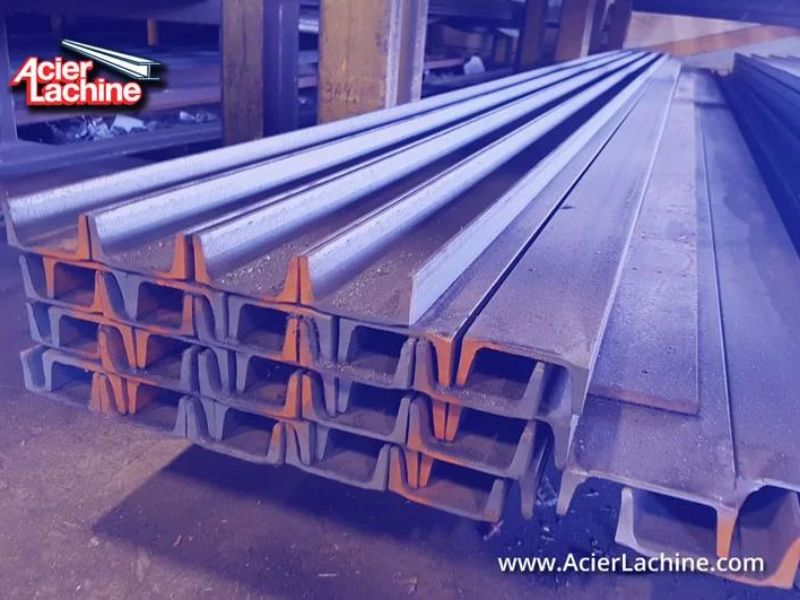

Our Steel Structural Channels for Sale View 6 Acier Lachine Montreal QC 800x600 2
